Description

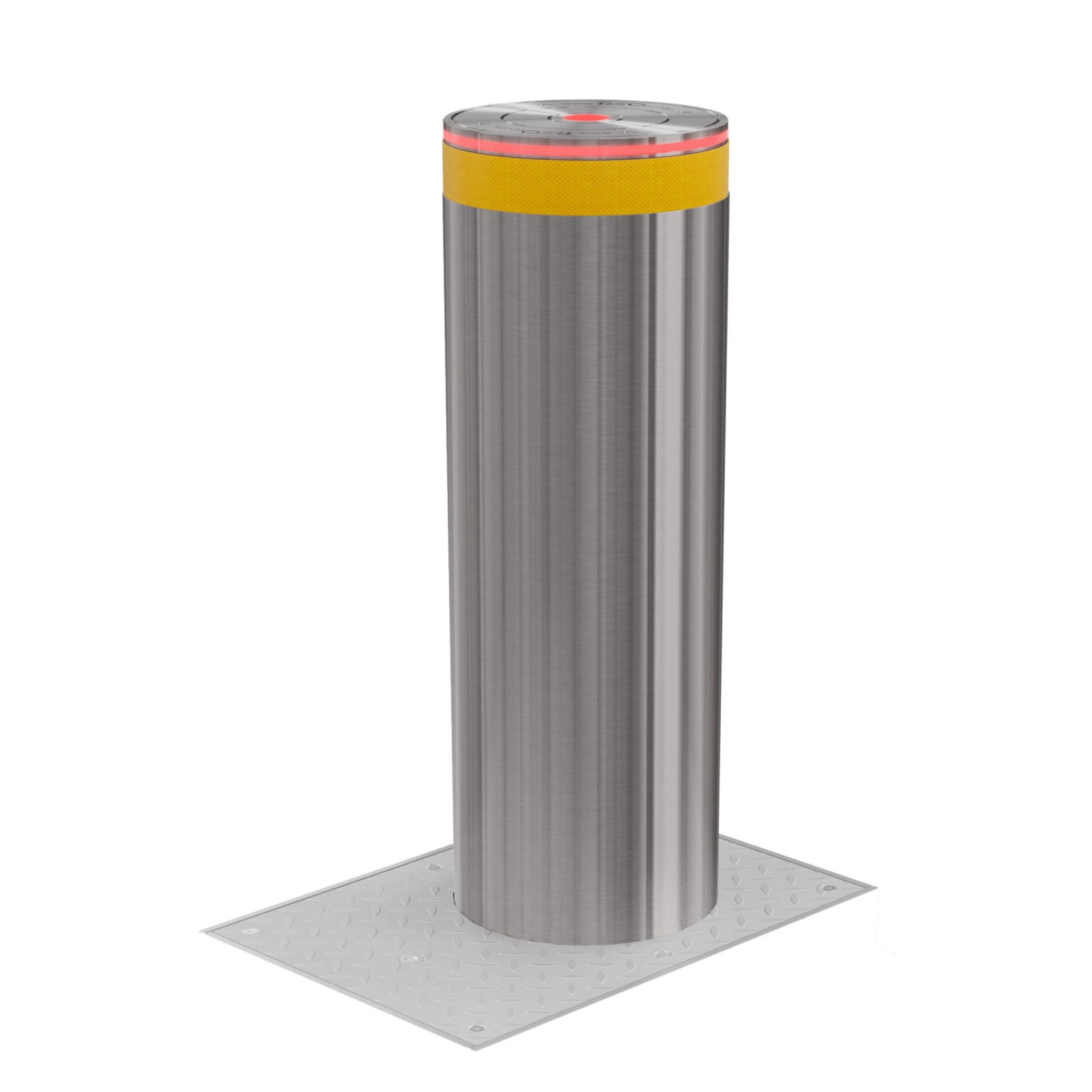

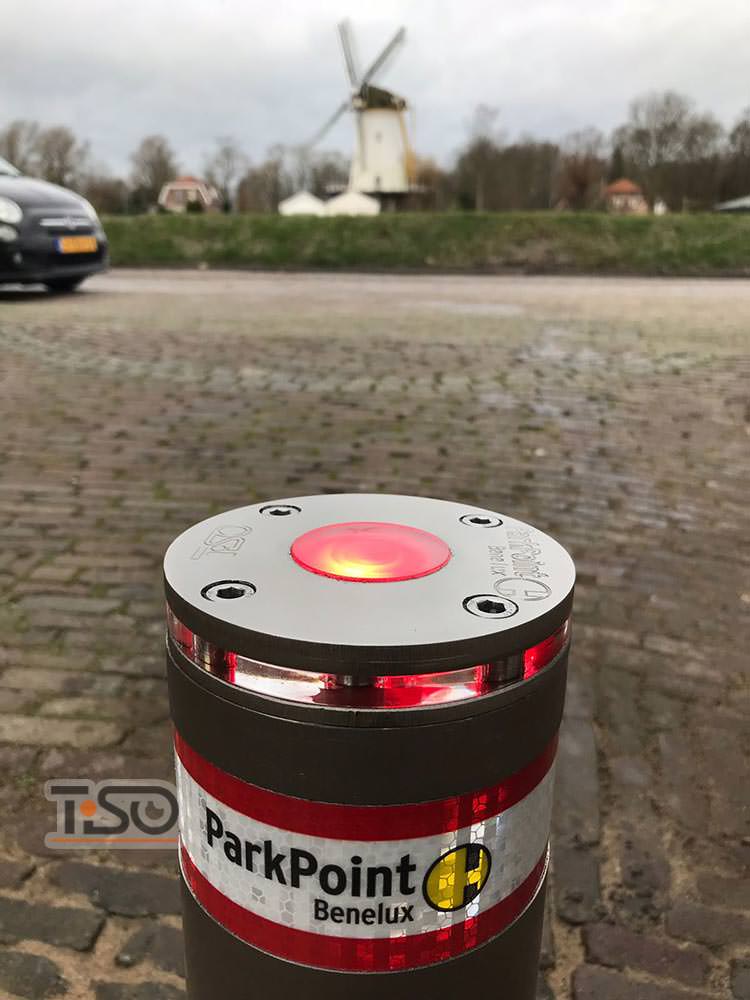

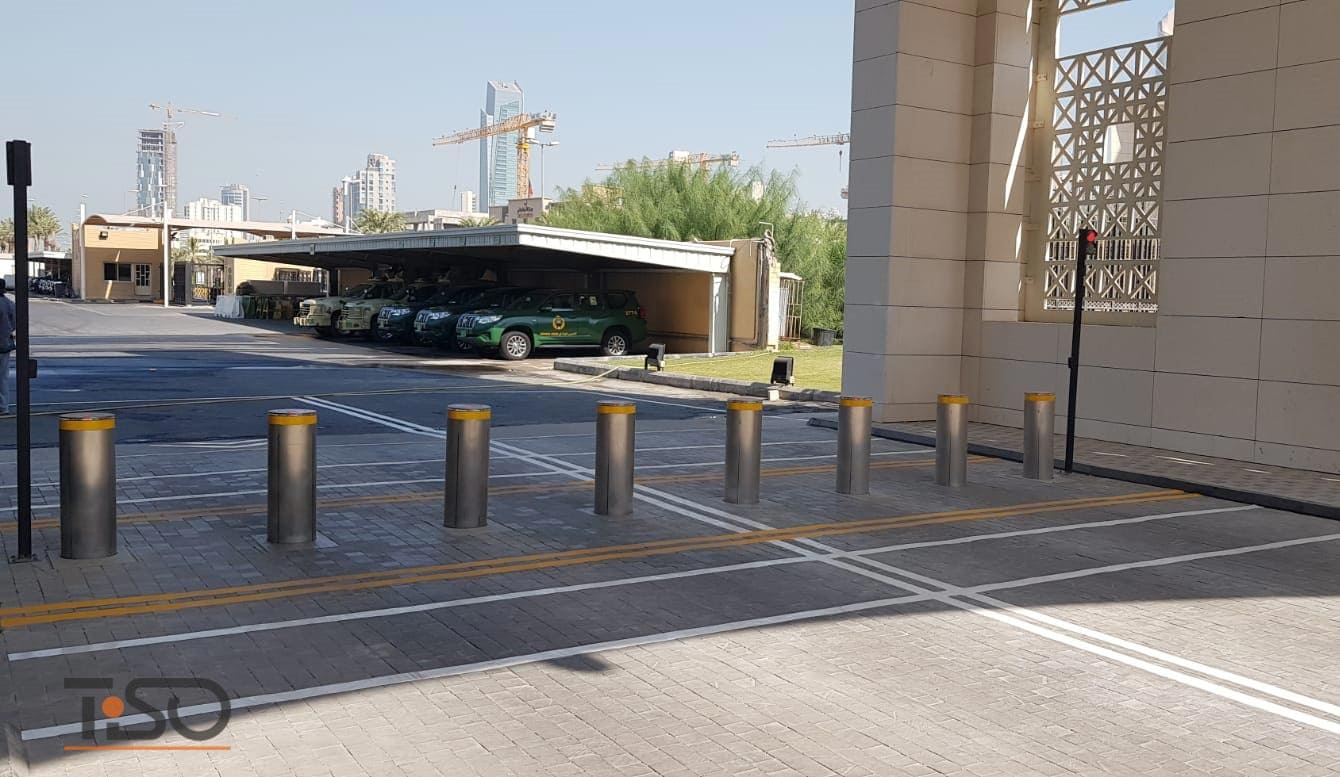

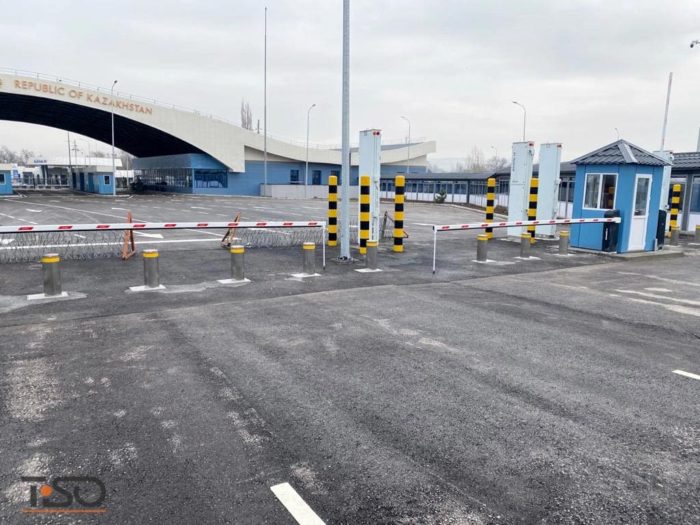

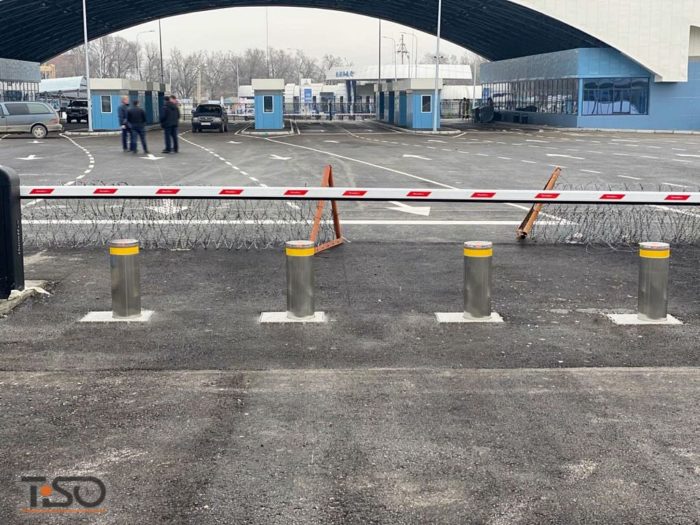

Parking bollards automatic TiSO companies are recommended for installation in high traffic areas. Such equipment provides traffic control without disturbing the aesthetic appearance of the protected area. Automatic bollards are controlled remotely. The design of the hydraulic bollard provides for the presence of a hydraulic station. It can be built-in or placed separately from the device. An important advantage of such barriers is the ability to connect several devices to one hydroelectric station.

Specifications (RB343)
Model	RB343-21	RB343-23	RB343-24	RB343-26
Installation type	submersible
Drive:	hydraulic/internal
Sliding cylinder diameter, mm	114	170	114	170
Cylinder lifting height, mm	600		800
Overall dimensions (LxWxH), mm • raised foundation anchors • lowered foundation anchors	610x755x980 460x610x980		610x755x1170 460x610x1170
Lifting time*, s	7,0 (± 1с)		9,0 (± 1с)
Lowering time*, s	5,5 (± 1с)		8,0 (± 1с)
Cylinder wall thickness, mm	3	5	3	5
Impact resistance, kJ	10	35	15	35
Impact resistance, kJ	60	155	65	155
Working pressure, bar	40
Power supply:	1 phase 230V, 50/60 Hz
Power consumption, W	330
Axle load, t	15
Temperature conditions**, °C	-10 / +40
Temperature conditions with heating system (optional), °C	-40 / +60
Protection level	IP 67 for Bollard IP 55 for control box
Intensity of use	Average ***
Drawer Cylinder Materials	- Stainless steel AISI 304 / AISI 316; - Painted steel (any color of the RAL scale); - At the request of the client.
* specifications subject to change without notice for temperatures lower than -10 °C a heating system is used; for temperatures above +40 °C use a cooler * at temperatures above +40 °C, the intensity of use becomes lower than average

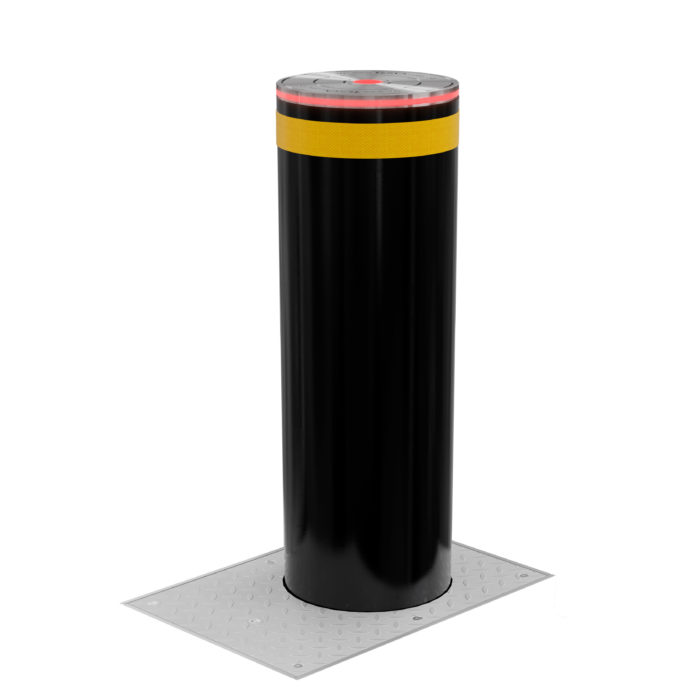

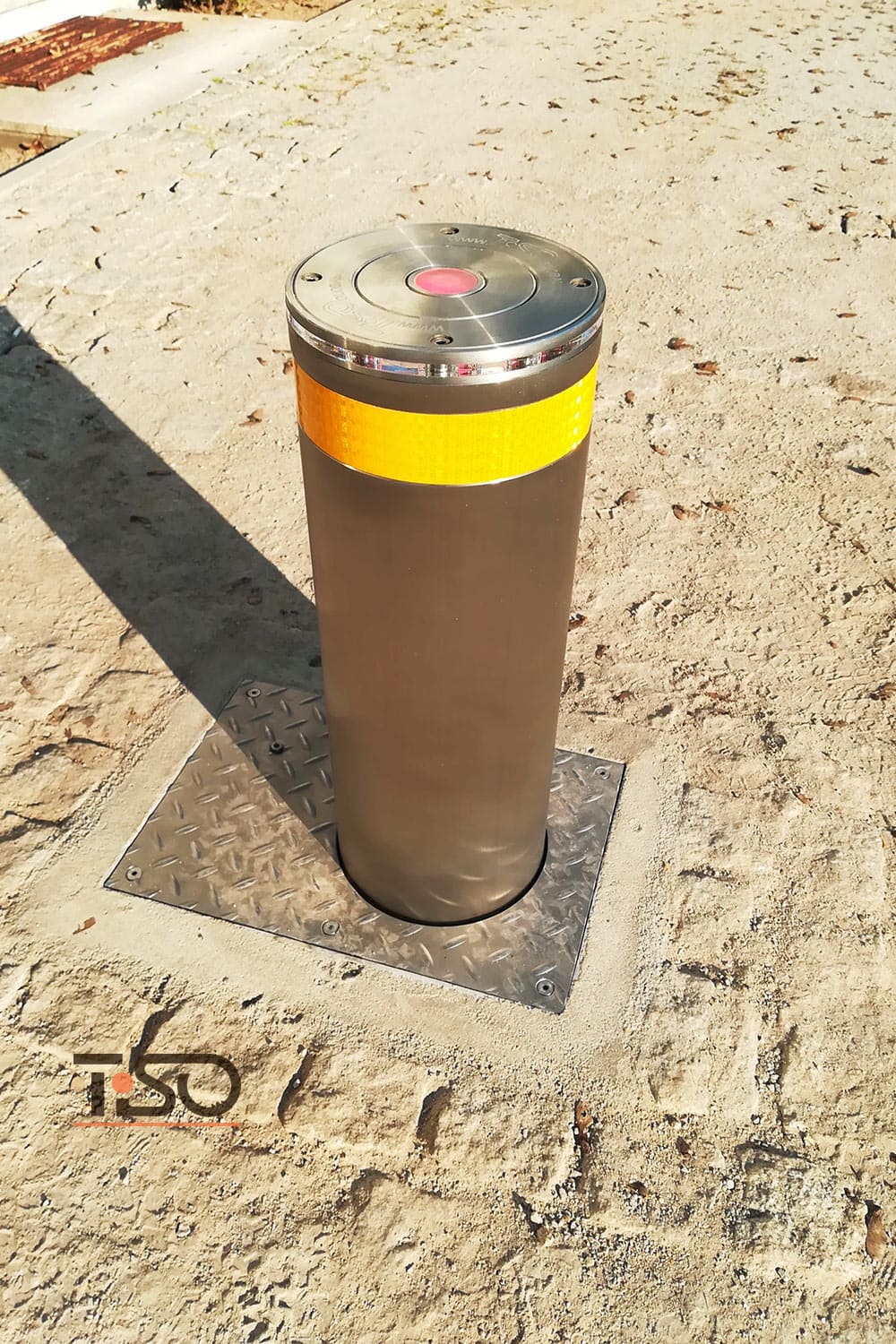

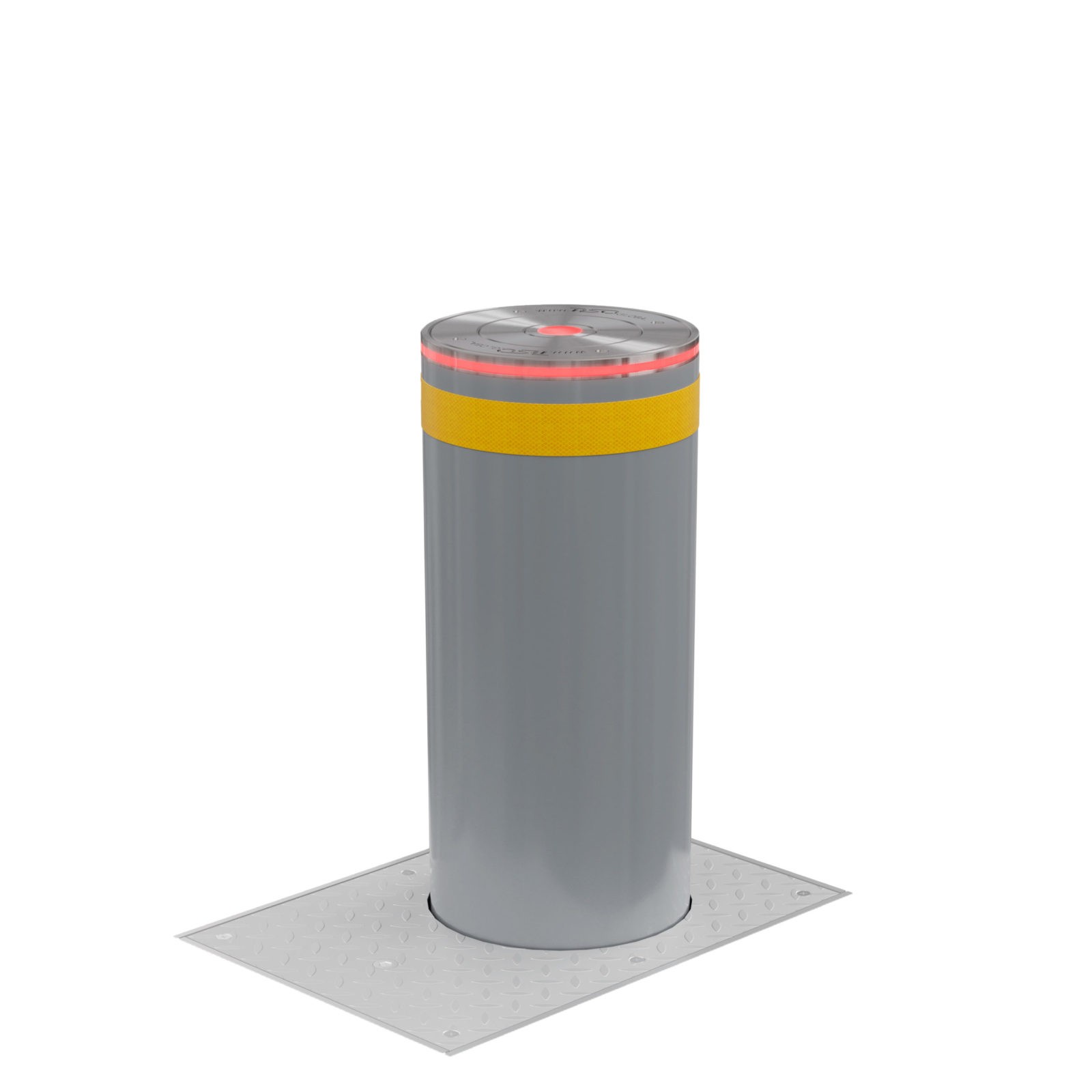

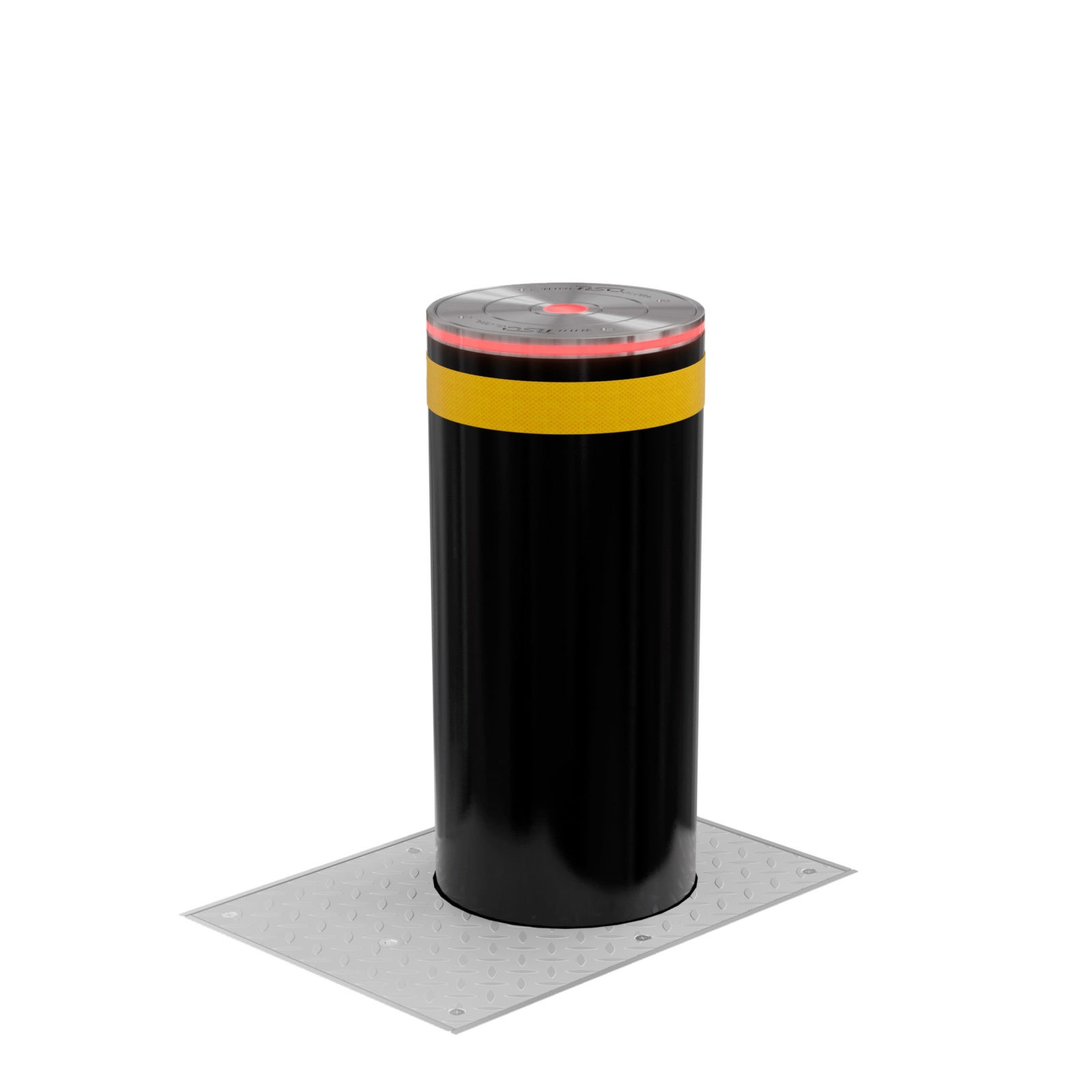

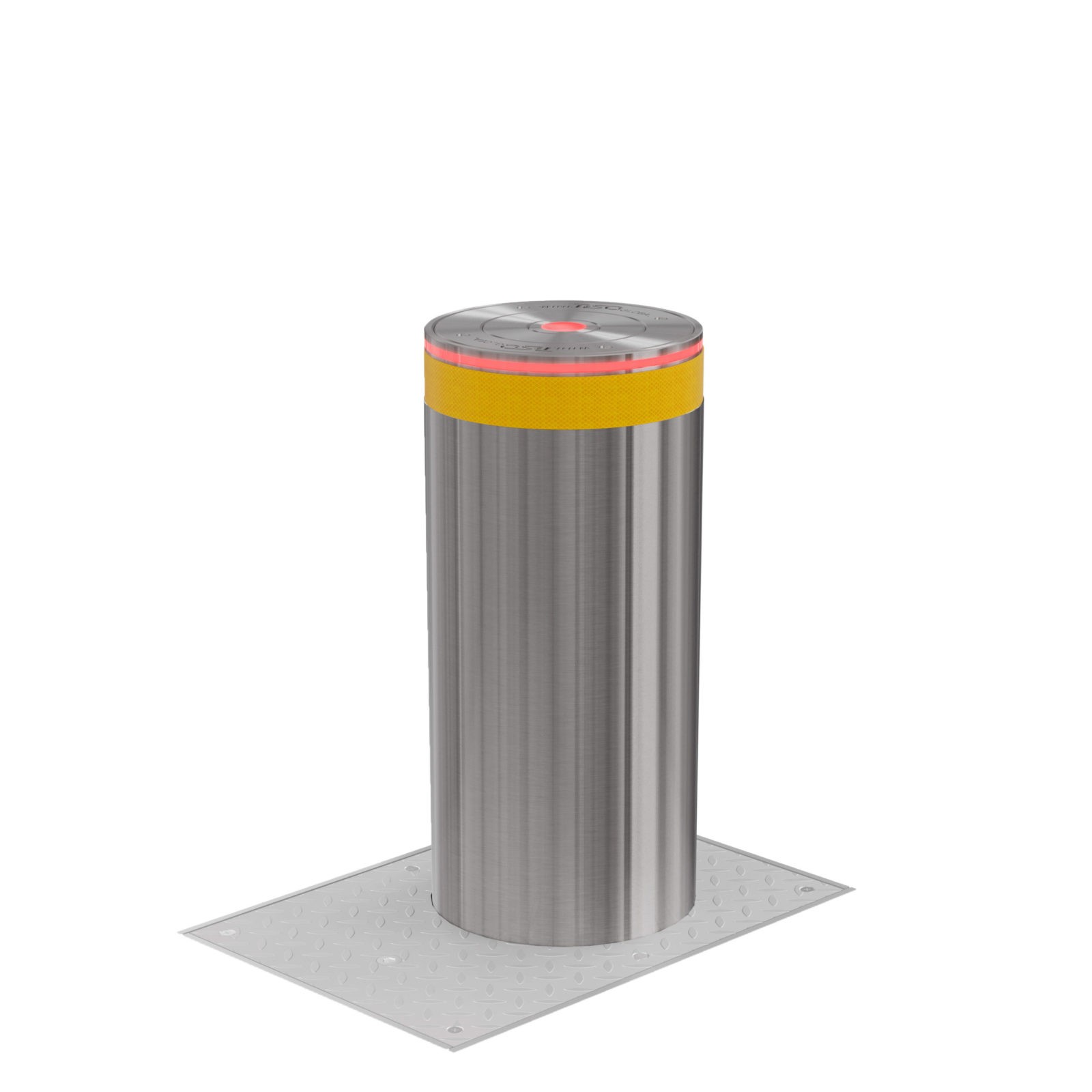

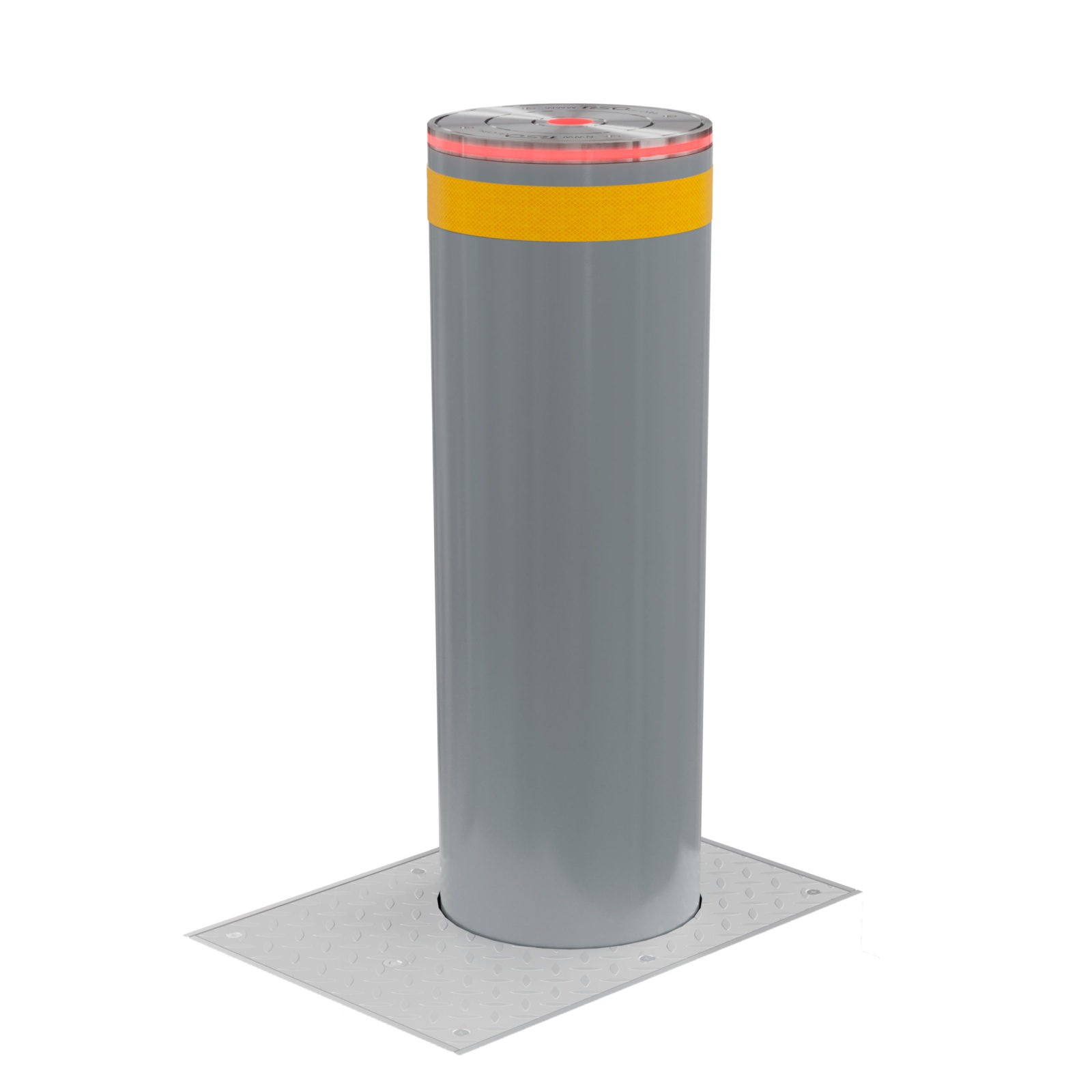

Specifications (RB349)
Model	RB349-11	RB349-12	RB349-14	RB349-15
Installation type	submersible
Drive:	hydraulic/internal
Cylinder diameter, mm	220	273	220	273
Cylinder lifting height, mm	600		800
Overall dimensions (LxWxH), mm • raised foundation anchors • lowered foundation anchors	610x755x980 460x610x980	660x830x980 515x685x980	610x755x1170 460x610x1170	660x830x1170 515x685x1170
Lifting time*, s	7,0 (± 1с)		9,0 (± 1с)
Lowering time*, s	5,5 (± 1с)		8,0 (± 1с)
Retractable cylinder thickness, mm	4	8	4	8
Impact resistance, kJ	40	80	45	85
Impact resistance, kJ	160	580	165	585
Working pressure, bar	40
Power supply:	1 phase 230V, 50/60 Hz
Power consumption, W	330
Axle load, t	15
Temperature conditions**, °C	-10 / +40
Temperature conditions with heating system (optional), °C	-40 / +60
Protection level	IP 67 for Bollard IP 55 for control box
Intensity of use	Average ***
Drawer Cylinder Materials	- Stainless steel AISI 304 / AISI 316; - Painted steel (any color of the RAL scale); - At the request of the client.
* specifications subject to change without notice for temperatures lower than -10 °C a heating system is used; for temperatures above +40 °C use a cooler * at temperatures above +40 °C, the intensity of use becomes lower than average
