Cyclone-L
Click to enlarge
Home Access control systems Turnstiles Cyclone-L
Sesame
Sesame
Back to products
SLIDE
SLIDE
TiSO

Cyclone-L

Specifications and equipment of the goods may differ from those shown in the photo.

Add to wishlist
Category: Turnstiles
  • Description
  • Characteristics
  • Video
Description

Description

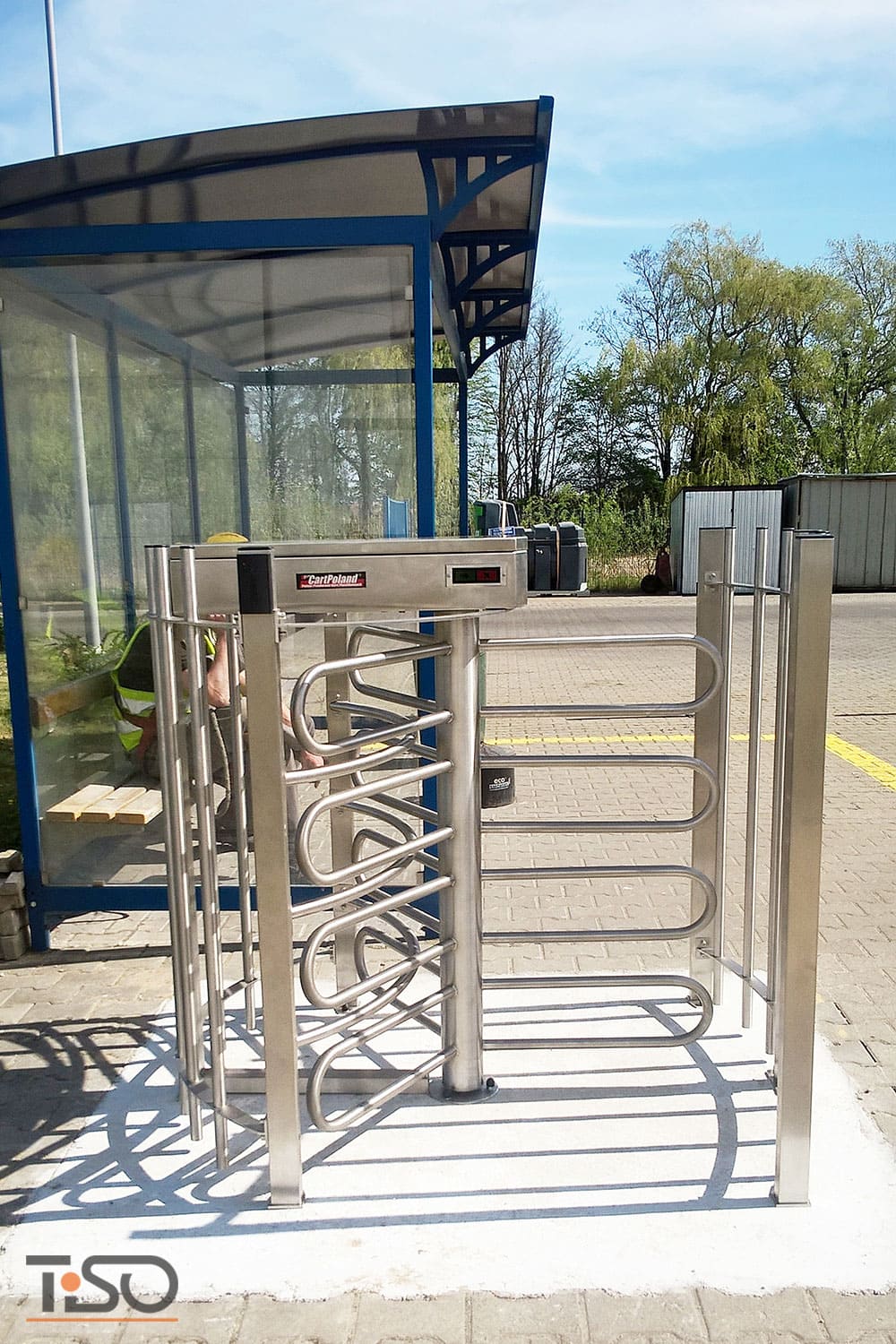

Cyclone-L  is a type of outdoor half height turnstile with metal wings. Wings’ design may be straight as well as U-shaped. By default it has electromechanical drive. The range of modifications includes three and four wing types as well as different type of metal finishing.

In the event of a power outage, power is supplied from the battery, which is installed in the structure. In this case, the turnstile is blocked only by a special key.

Peculiarities when the power supply is switched off, the half-height rotary turnstile switches to the locked state and can be unlocked with a special key. To ensure operability in case of interruptions in the electrical network, a rechargeable battery is connected, a place for which is provided inside the turnstile.

Characteristics
Характеристики (Cyclone-L)
Options X-type (90°) Y-type (120°)
Overall dimensions (WxDxH), mm 1430x1350x1314 1430x1168x1314
Throughput in the mode of free passage, people / min 60
Throughput in single pass mode, person/min 20
Passage width, mm 533
Mechanism servo-driven (motorized)
Standard version Brushed stainless steel AISI 304
Available options Brushed stainless steel AISI 316
Polished stainless steel AISI 304
Polished stainless steel AISI 316
Hot dip galvanizing
Painting in any RAL color
Supply voltage primary - (100-240) V, 50/60 Hz; secondary - 12 V.
Maximum power consumption, W 55
MCBF, cycles 1 500 000
Degree of protection according to GOST 14254-96 IP41-65*
Temperature, °C +1 / +40
* operational

Specifications (Cyclone Twin-L)
Options Y-type (120°)
Overall dimensions (WxDxH), mm 2280x1168x1314
Throughput in the mode of free passage, people / min 120
Throughput in single pass mode, person/min 40
Passage width, mm 533
Mechanism servo-driven (motorized)
Standard version Brushed stainless steel AISI 304
Available options Brushed stainless steel AISI 316
Polished stainless steel AISI 304
Polished stainless steel AISI 316
Hot dip galvanizing
Painting in any RAL color
Supply voltage primary - (100-240) V, 50/60 Hz; secondary - 12 V.
Maximum power consumption, W 110
MCBF, cycles 1 500 000
Degree of protection according to GOST 14254-96 IP41-65*
Temperature, °C +1 / +40
* operational
