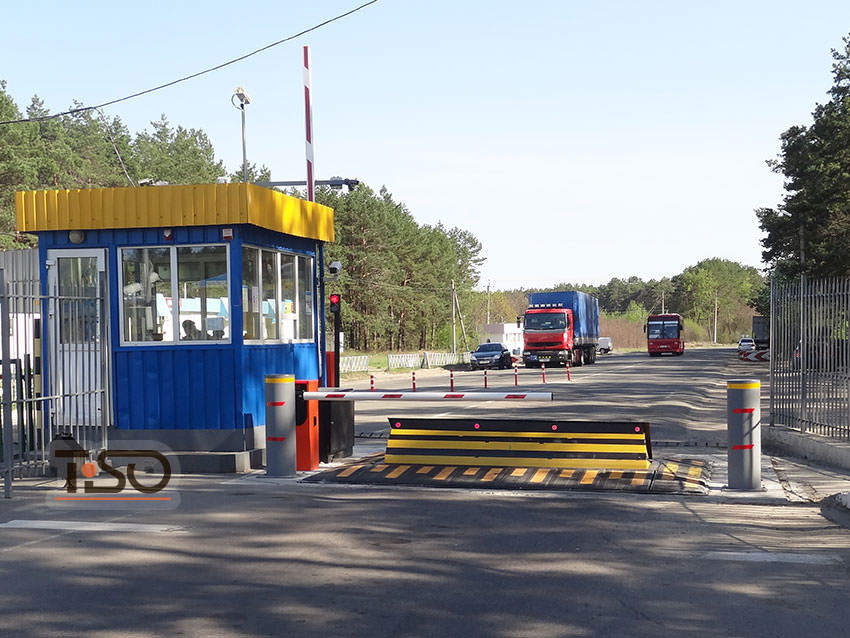

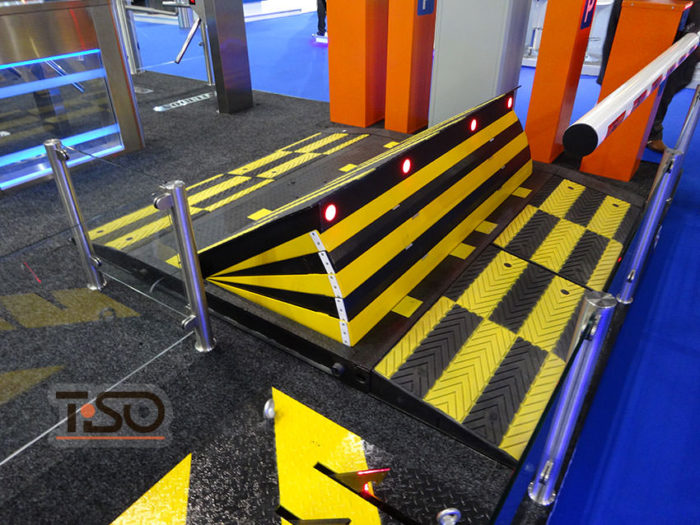

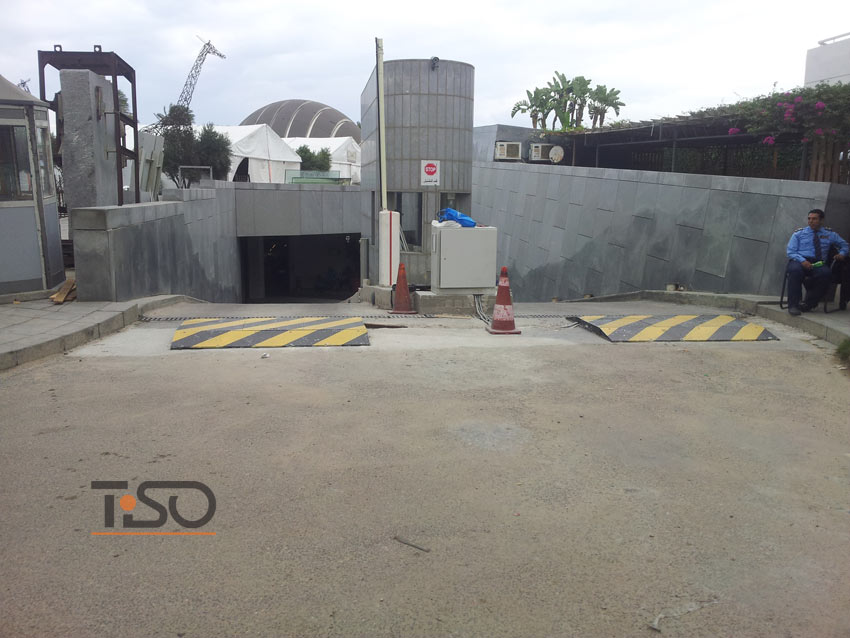

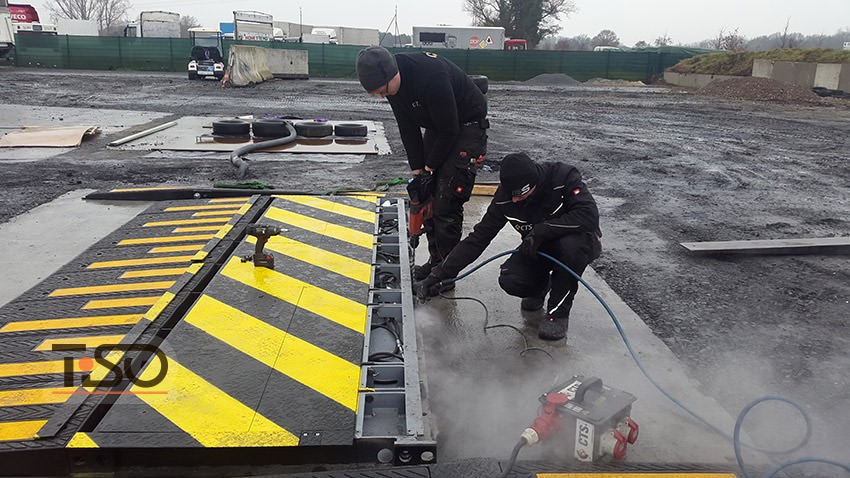

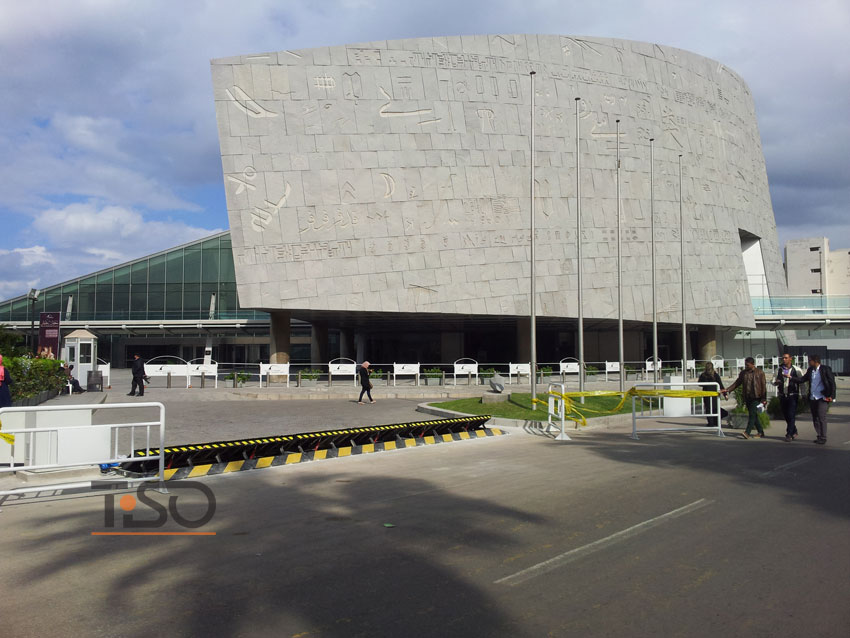

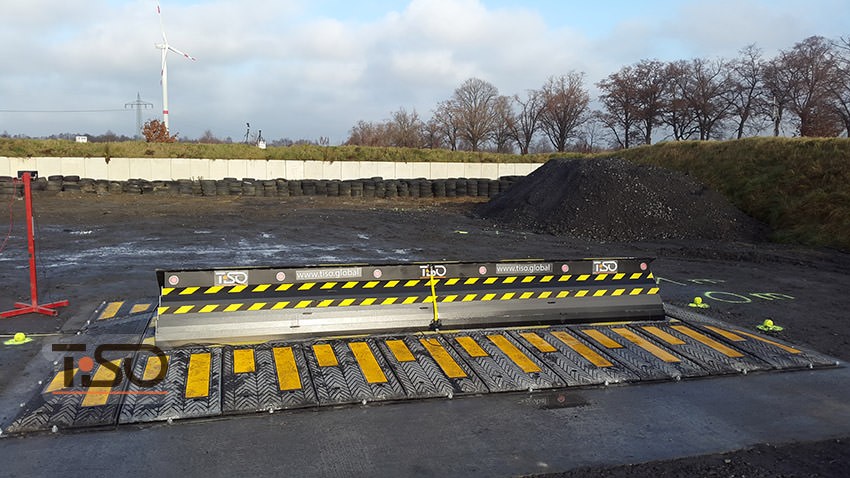

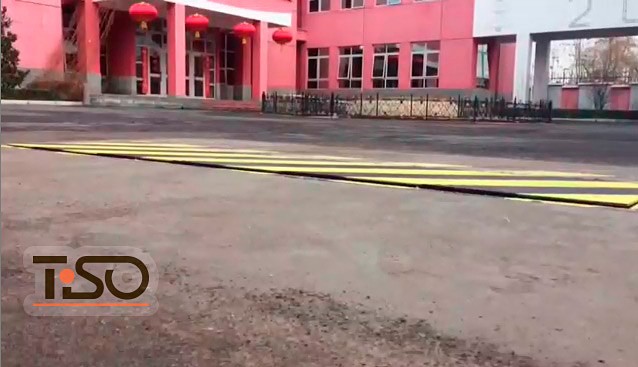

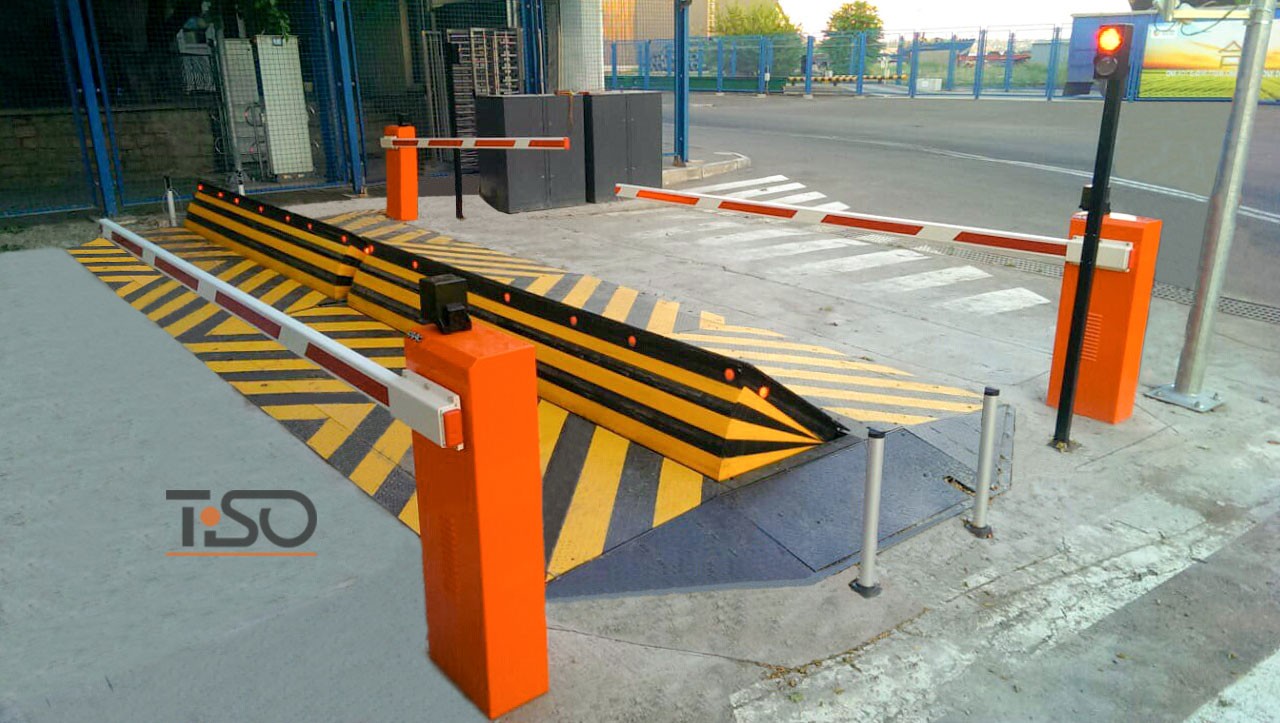

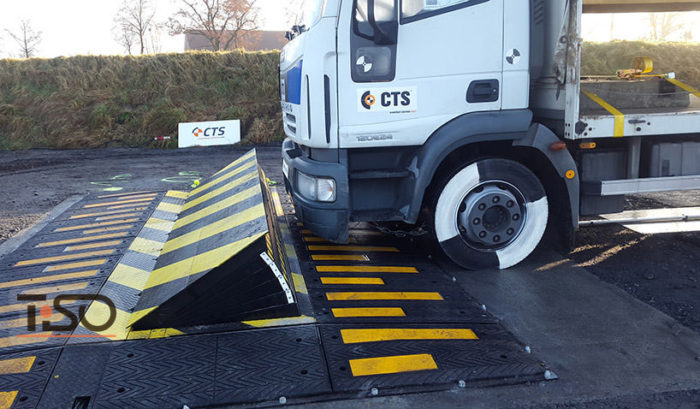

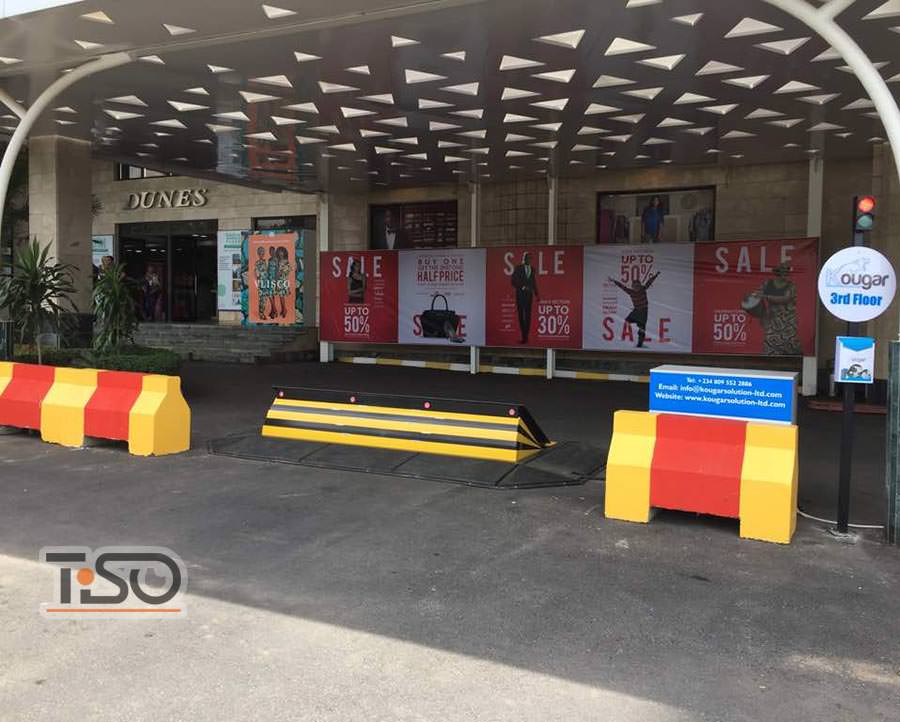

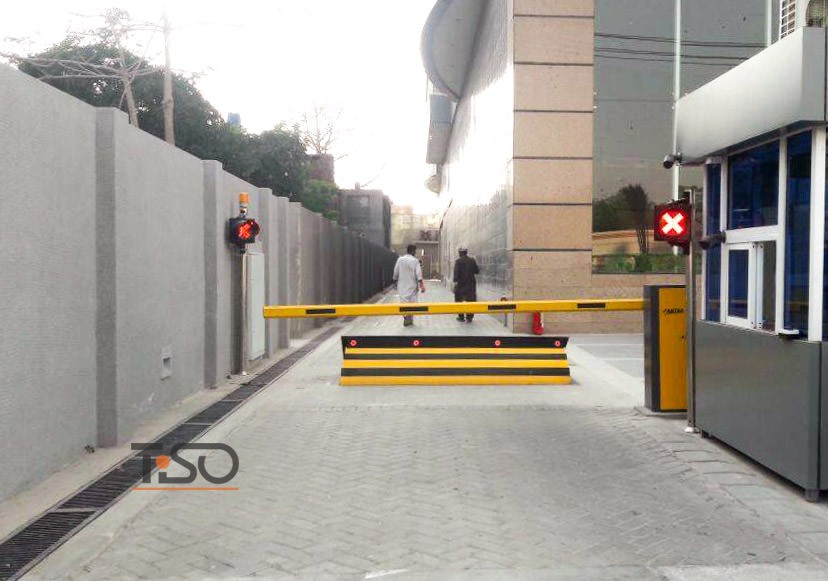

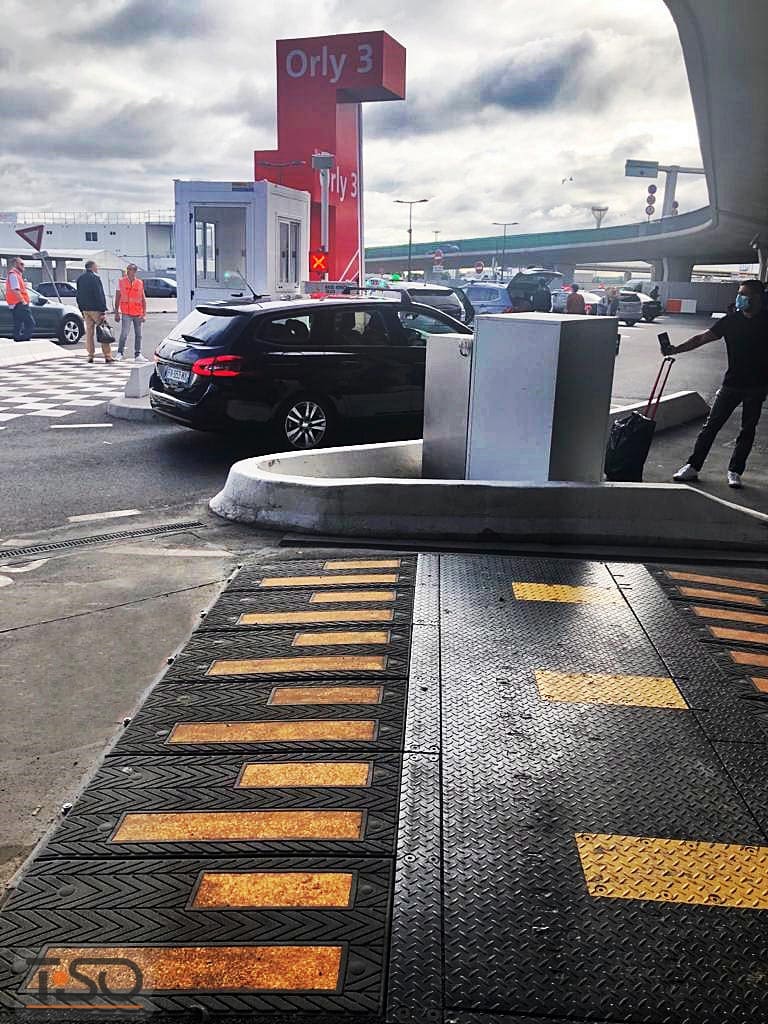

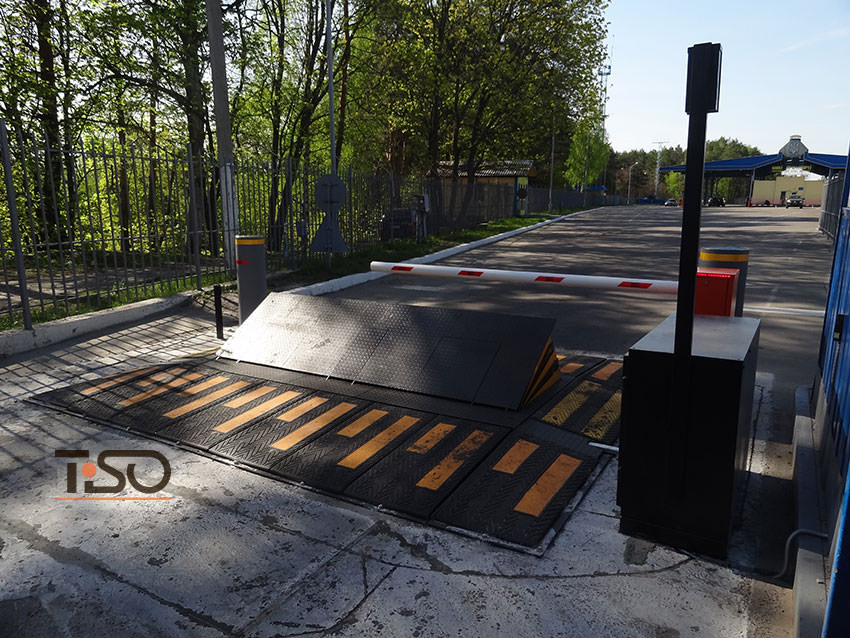

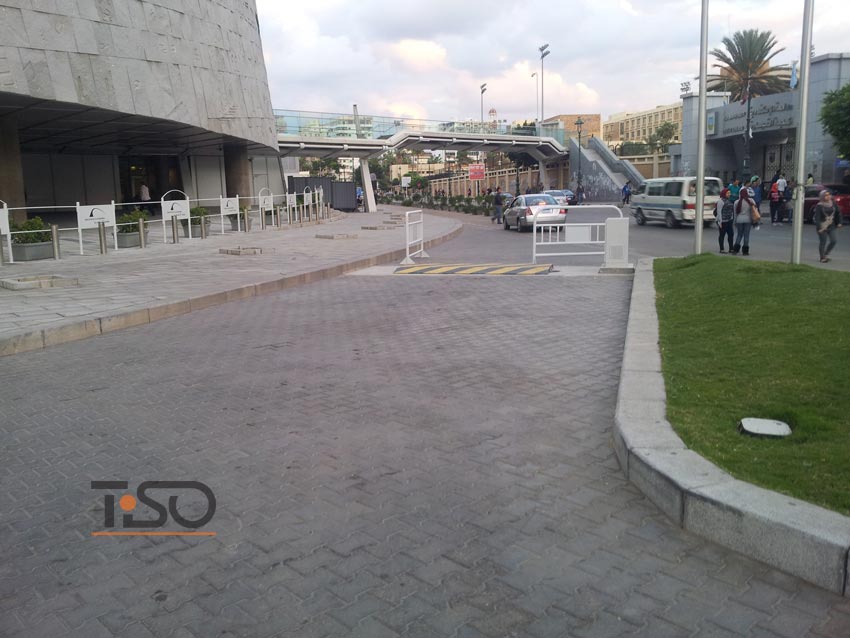

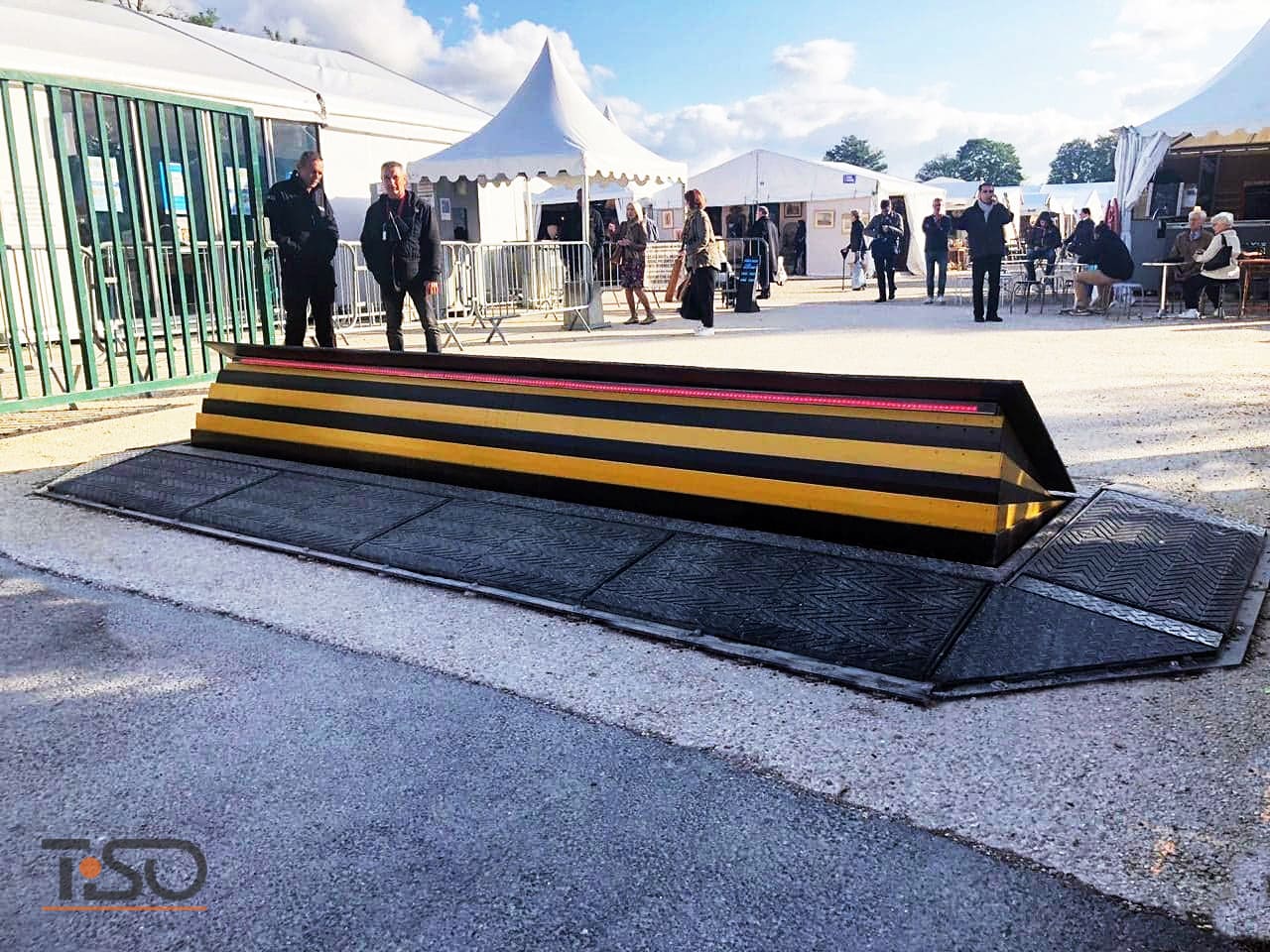

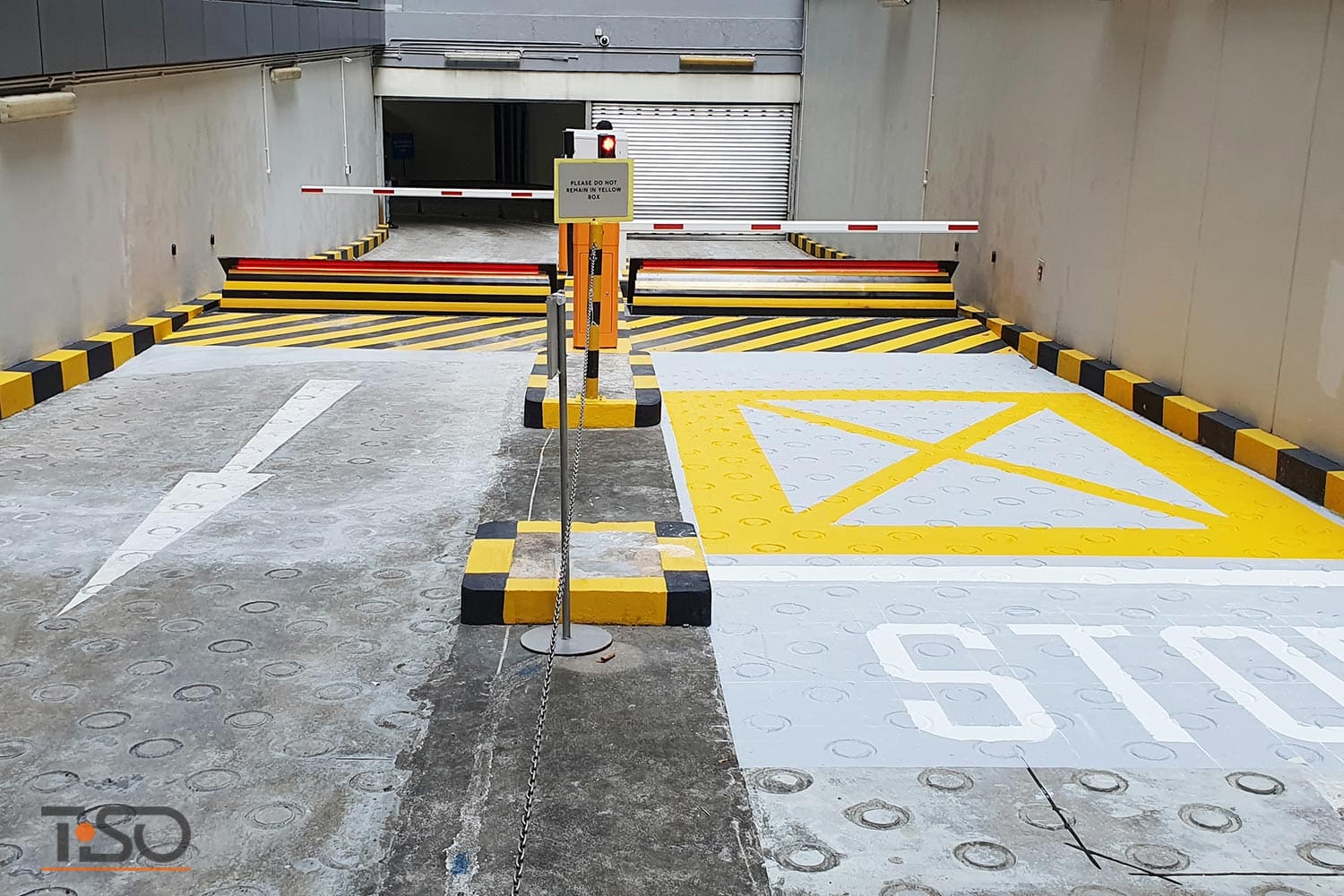

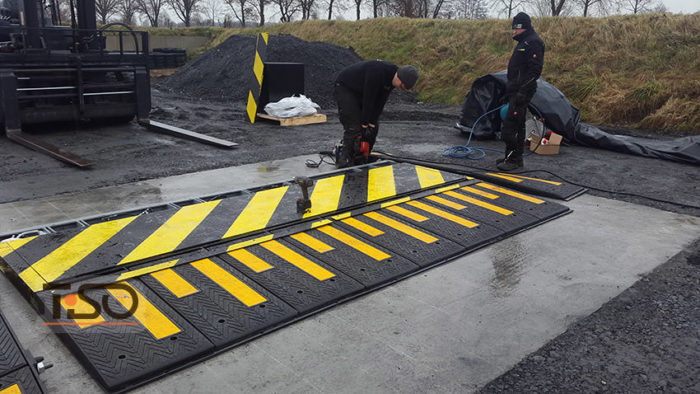

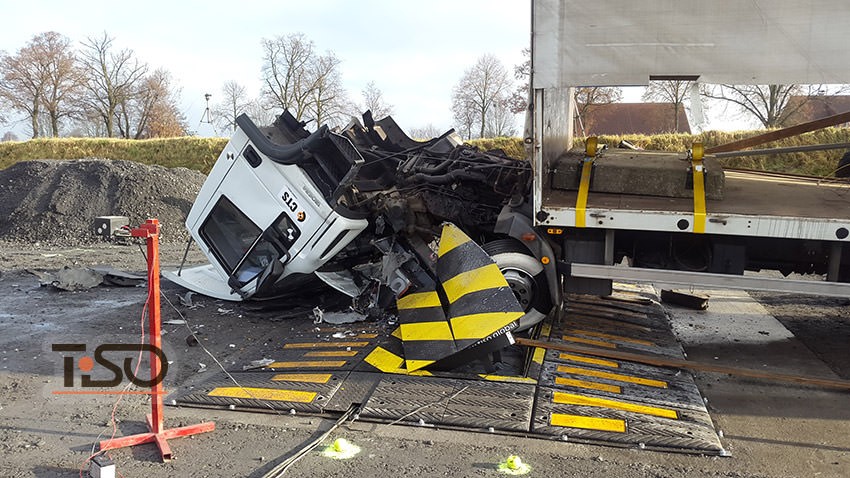

M30 SpeedBump Anti-ram Blocker designed for installation in areas with a high level of terrorist threat. Most often, this type of equipment is installed in areas with a high risk of attack by heavy vehicles: public places (stadiums, exhibition grounds), government agencies or military infrastructure, and the like. Reliability is confirmed by international certificates, which were issued on the basis of successful crash tests (tests that check the strength and power of equipment). According to ASTM F2656/F2656 M-15 and IWA 14-1:2013, this anti-ram device is rated M30 (K4). A feature of this type of equipment is the ability to mount directly on the road surface. The Speedbump anti-ram bollard uses rubber ramps to securely attach to the roadway. This device can be installed with immersion in the ground (the immersion depth is only 120 mm). This type of equipment, like parking equipment, has a hydraulic drive and can be installed in areas with high traffic.

Технические характеристики:
Model	RB359-02	RB359-03	RB359-04
Protection level	ASTM F2656 M30	ASTM F2656 M30	ASTM F2656/F2656 M-15, M30, P1(-0.7m) IWA 14-1:2013 Blocker V/7200 [N2B]/48/90:-0,3
Installation type	submersible / overhead
Drive:	hydraulic / external
Access blocking width, mm	2000	3000	4000
Barrage height. platforms, mm	500 (± 20 мм)
Mounting depth submersible / overhead bollard	120 мм / -
Overall dimensions of the submersible blocker (HxLxW), mm central block	120x1330x2156	120x1330x3156	120x1330x4156

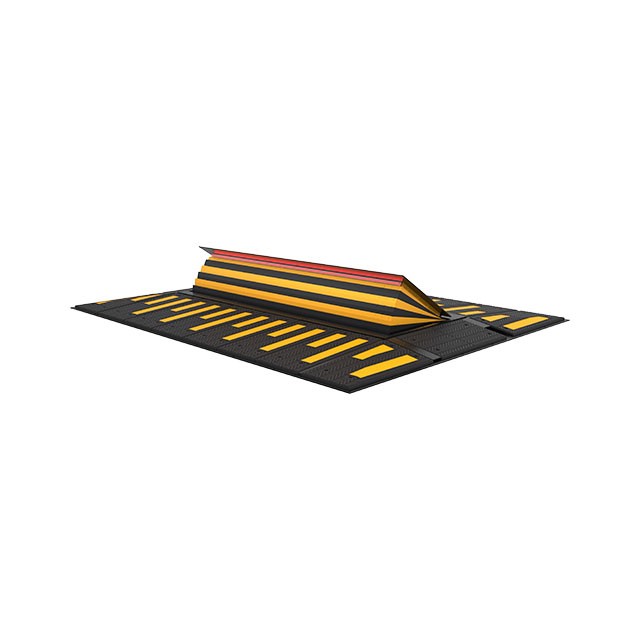

Overall dimensions of the overhead blocker (HxLxW), mm with a set of ramps - 500 mm with a set of ramps - 1000 mm	120x2310x3160 120x3290x3160	120x2310x4160 120x3290x4160	120x2310x5160 120x3290x5160
Rising time, s (± 1s)	3,5
Lowering time, s (± 1s)	3,5 (з EFO - 1,5 s)
Power consumption, W	2200	2200	3000
Axle load, t	15
Impact resistance, kJ	664
Temperature conditions**, °C	-40 / +60
Power supply	3 phase 400V, 50/60Hz
Protection level	IP67 for device IP54 for control box
Material	Structural steel C22
Ramp material	Structural rubber
* Specifications subject to change without notice ** For temperatures below -10°C use the heating system, above +40°C - use the cooling system (optional)
