Home Access control systems Turnstiles Sesame
HighWay-G
HighWay-G
Back to products
Cyclone-L
Cyclone-L
TiSO

Sesame

Add to wishlist
Category: Turnstiles
  • Description
  • Characteristics
  • Video
Description

Description

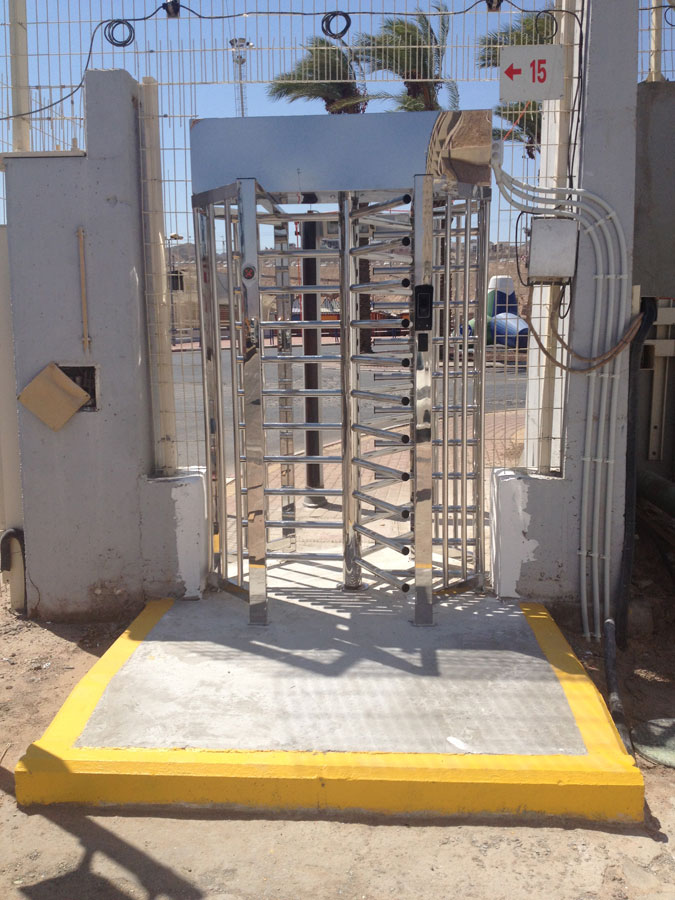

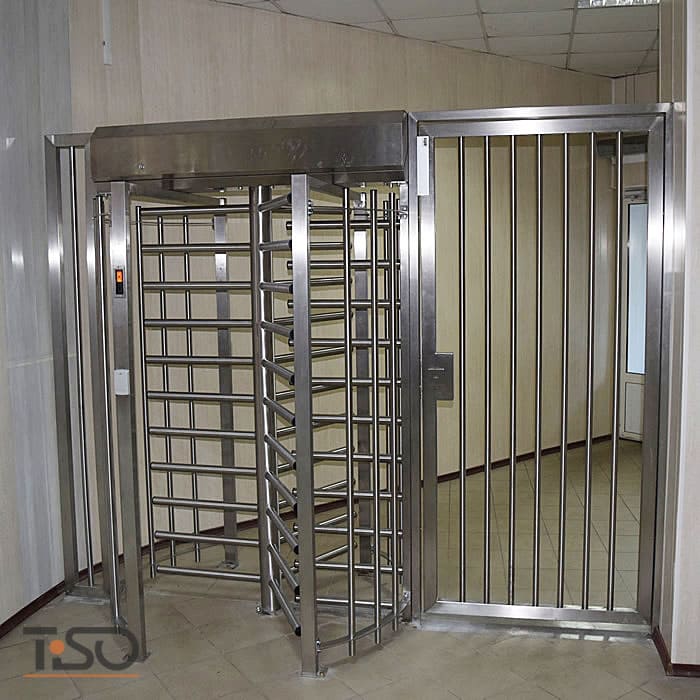

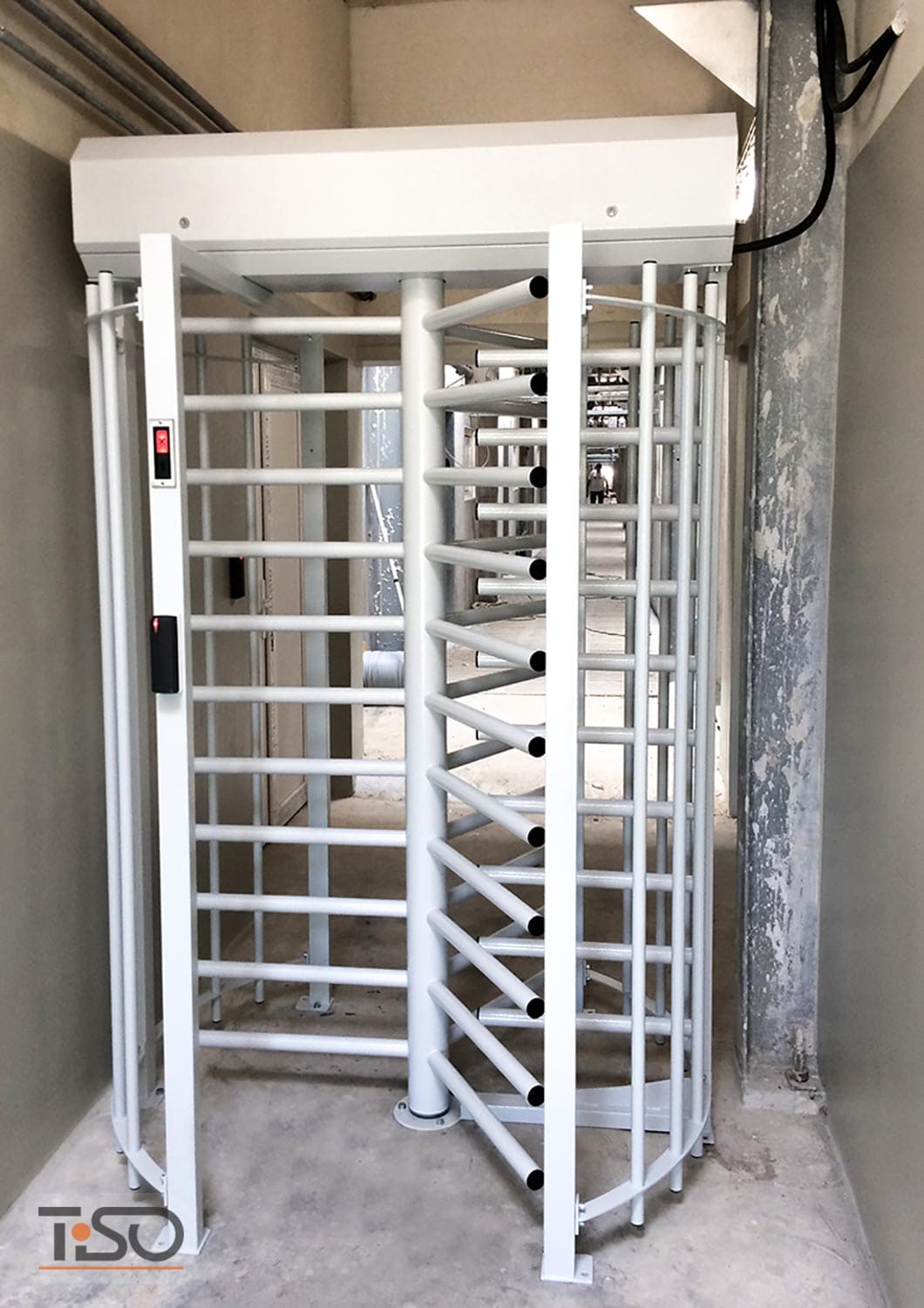

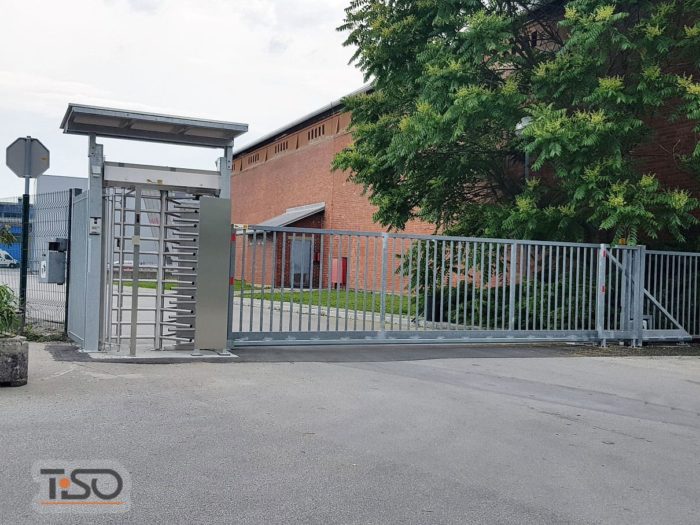

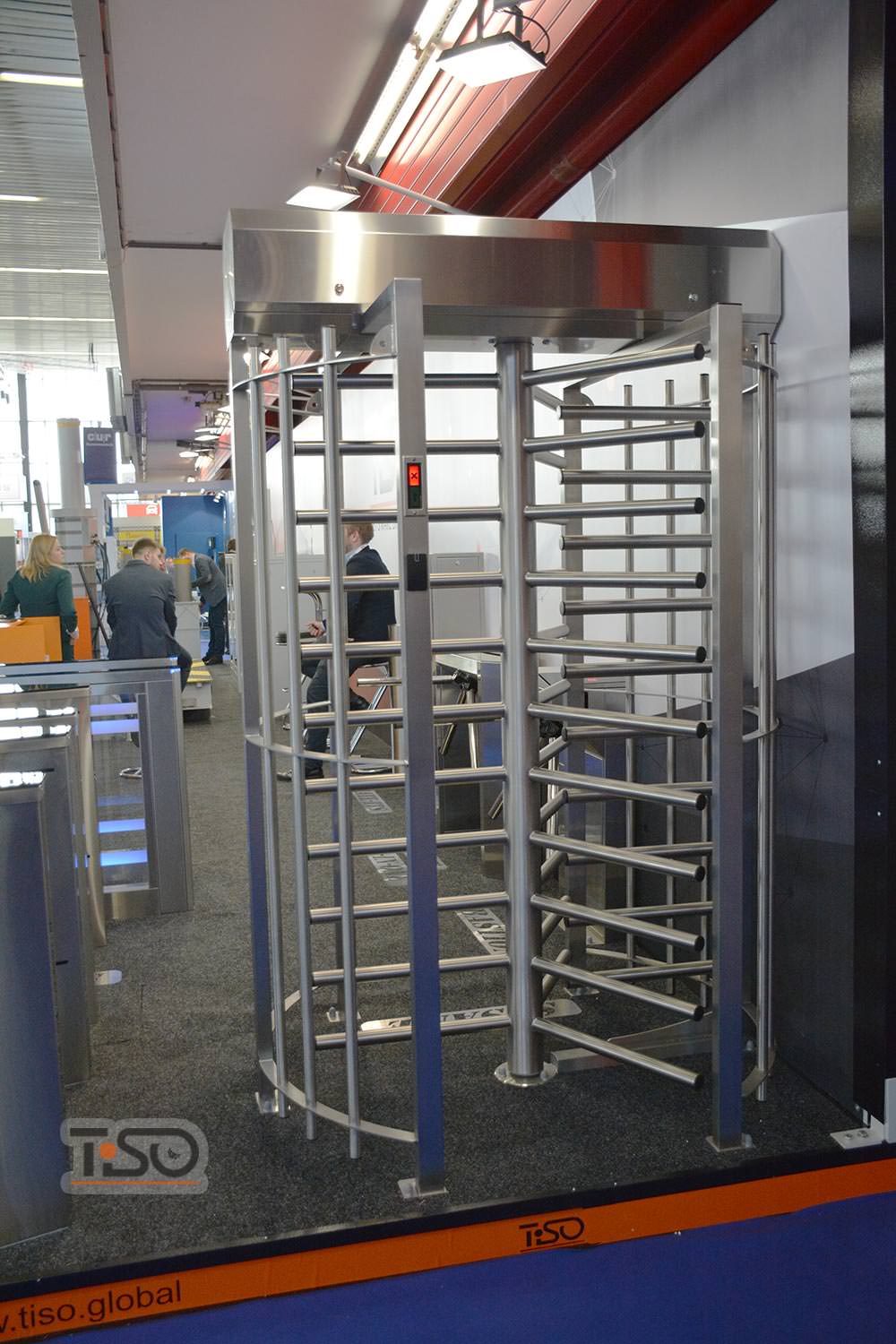

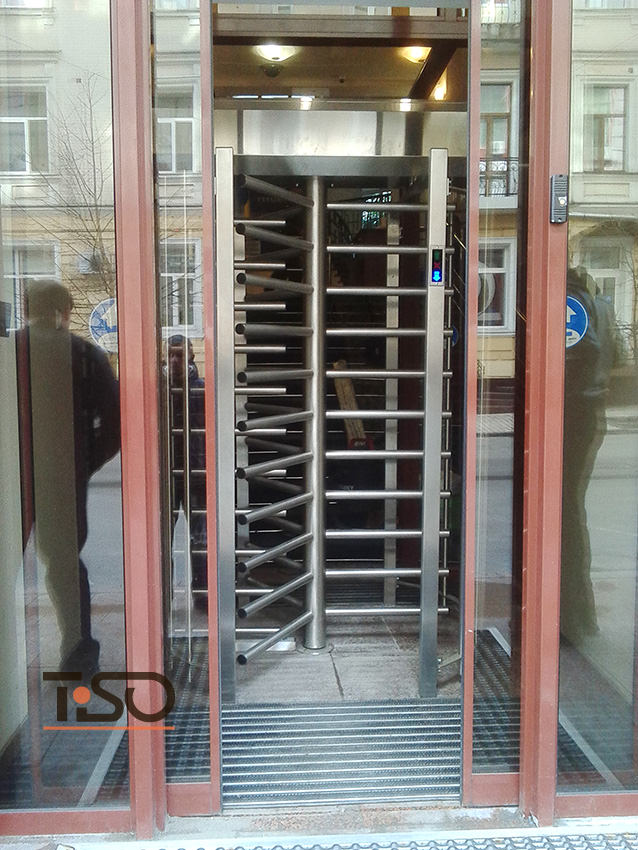

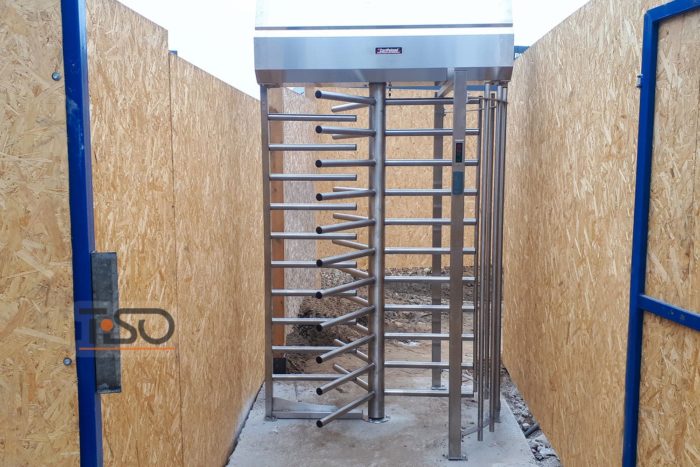

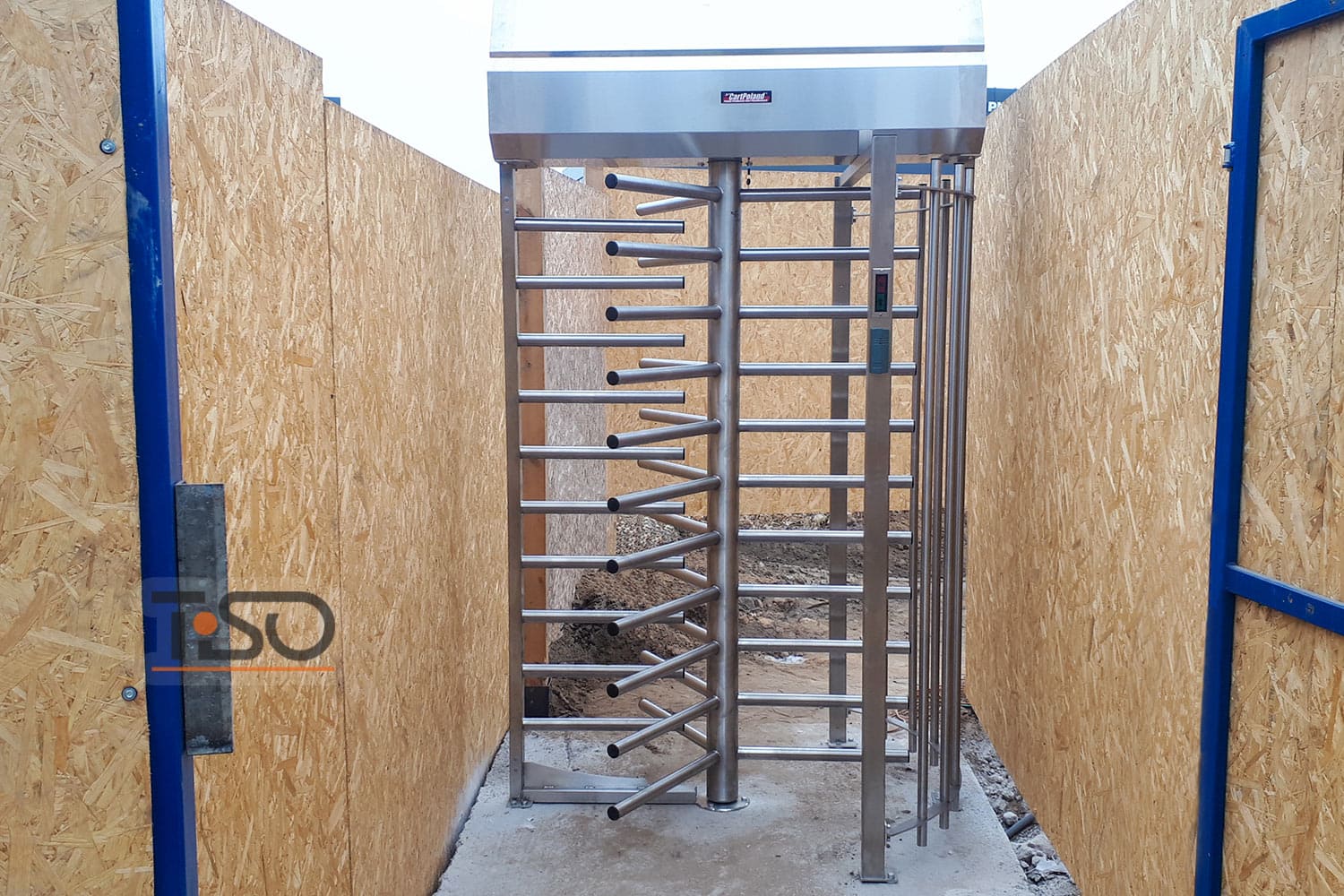

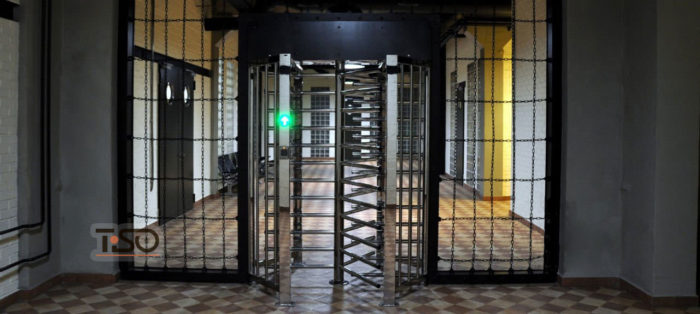

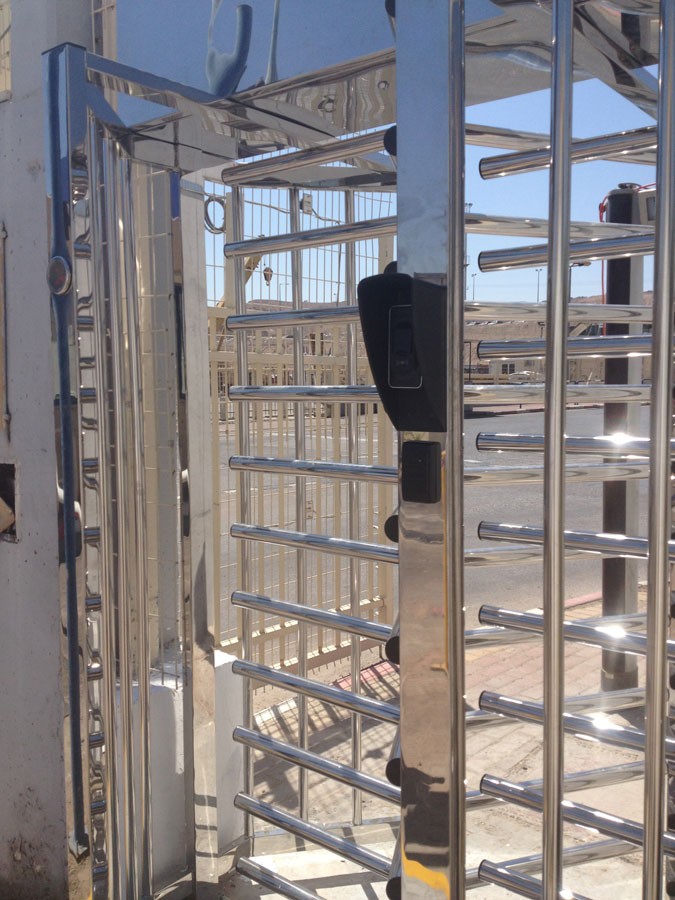

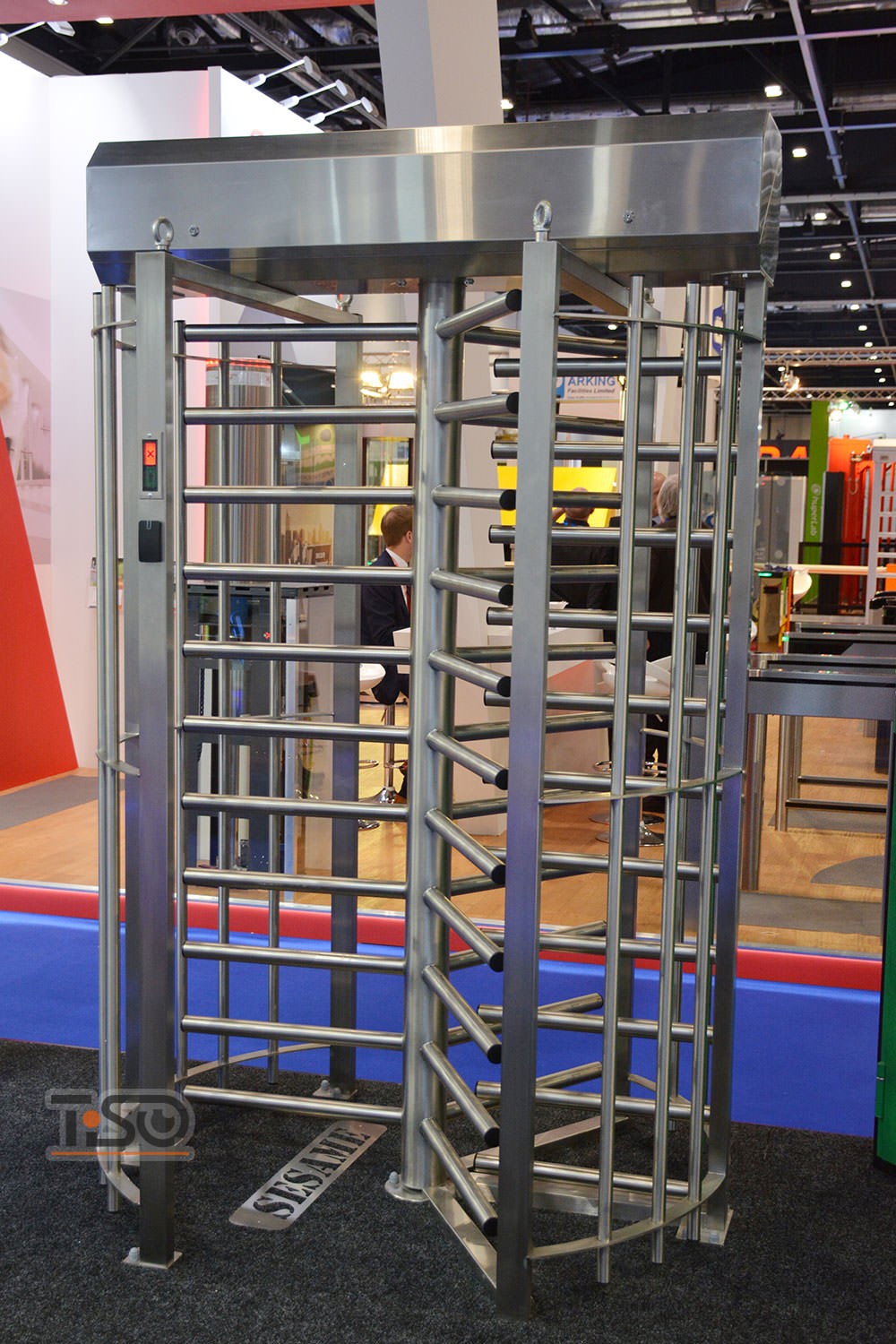

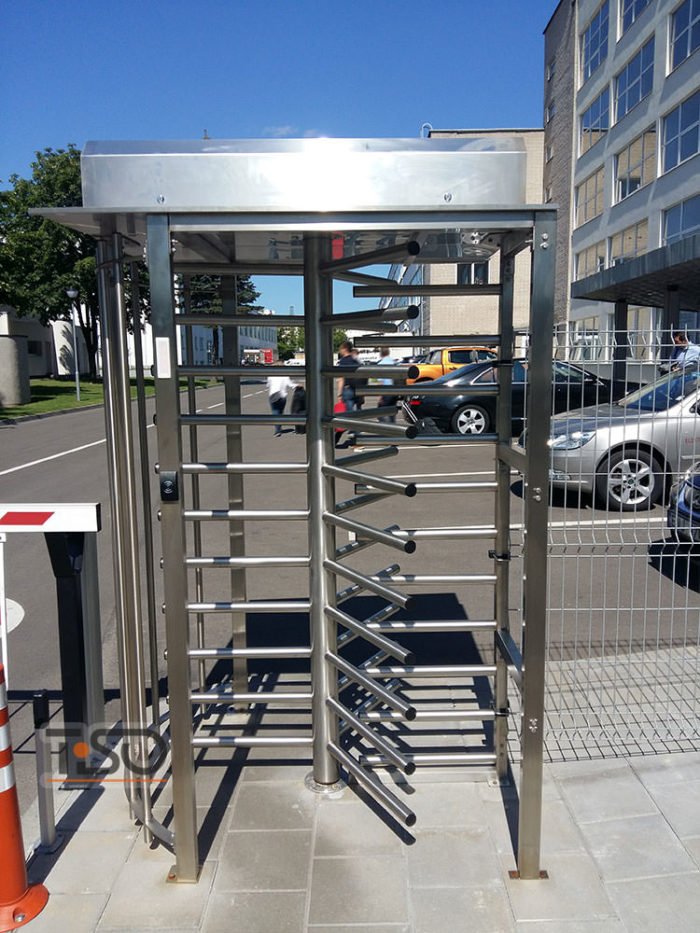

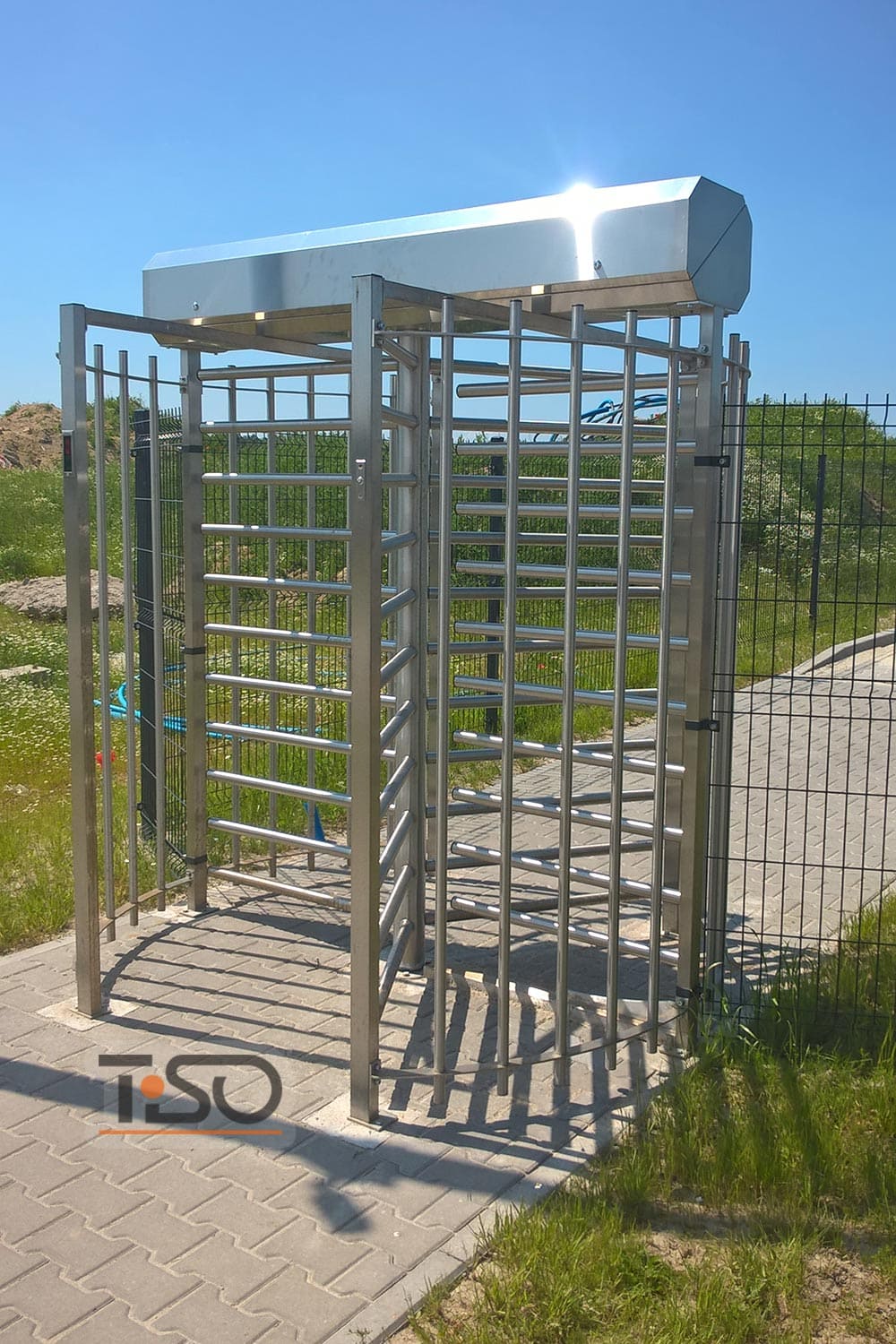

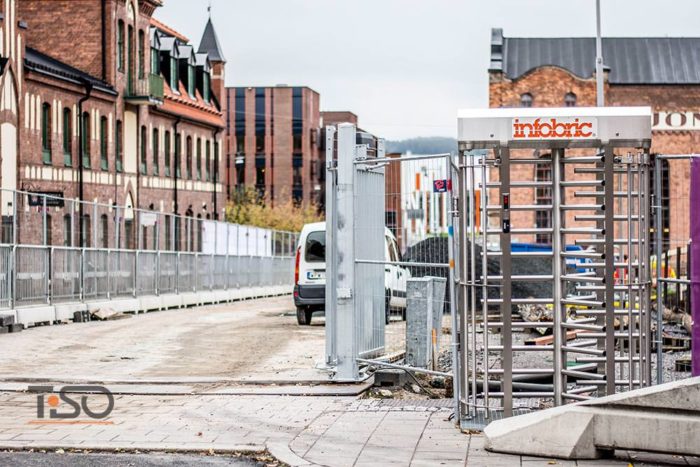

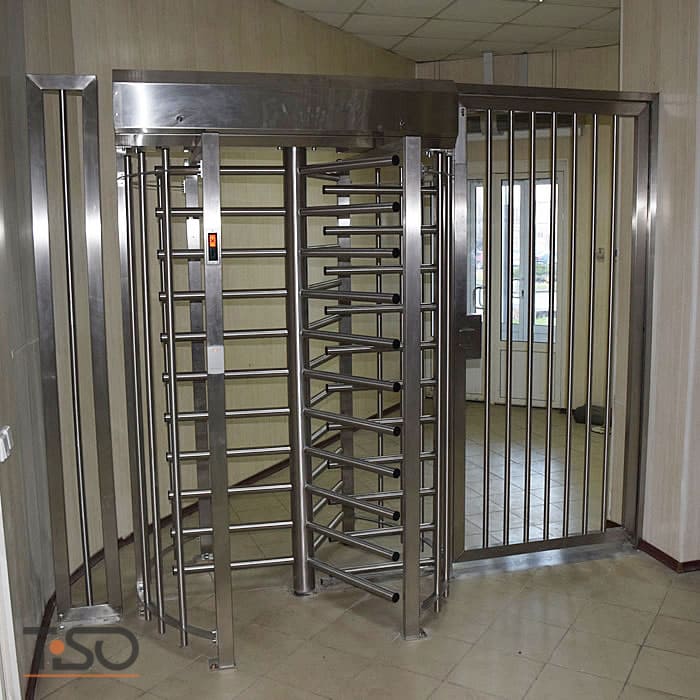

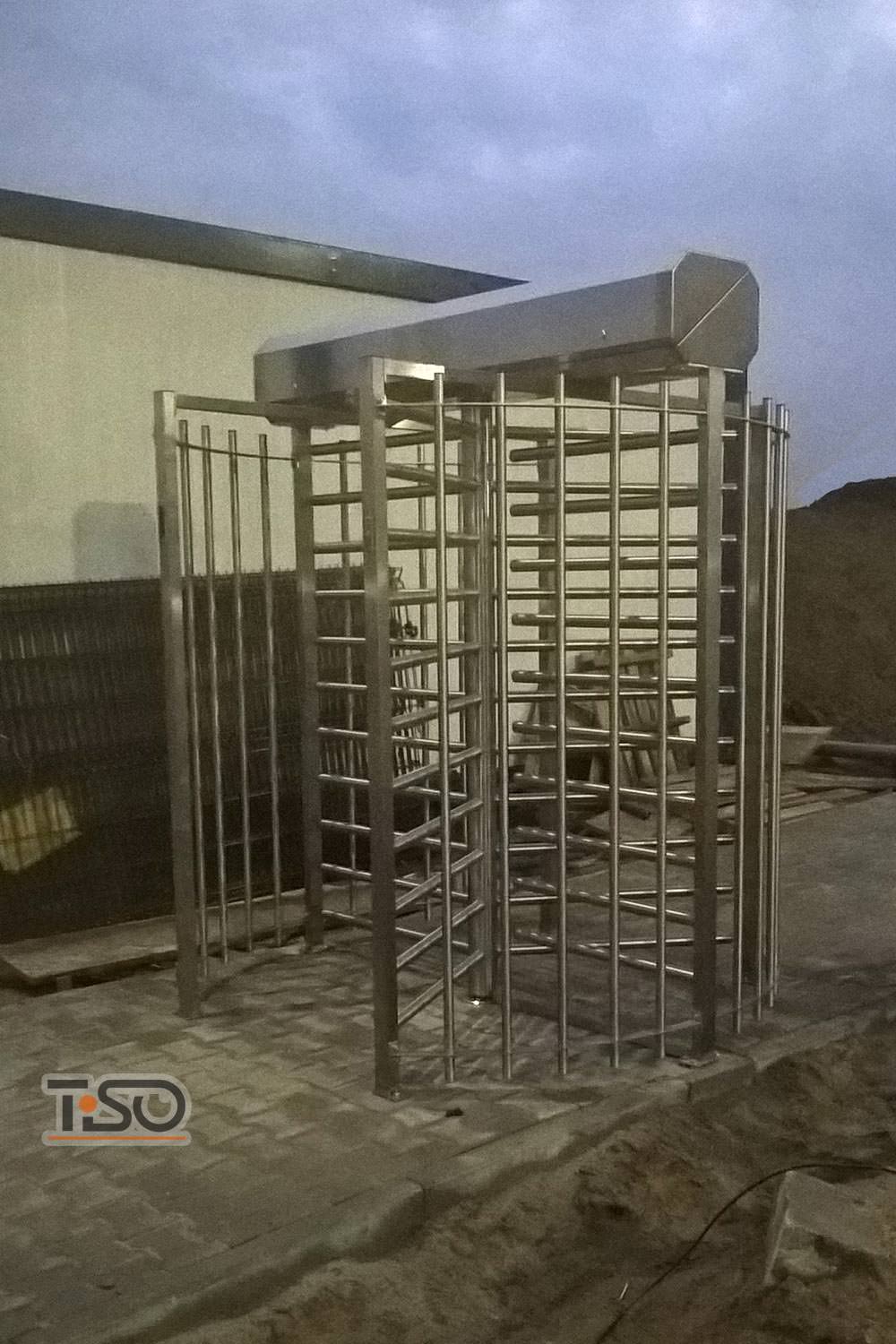

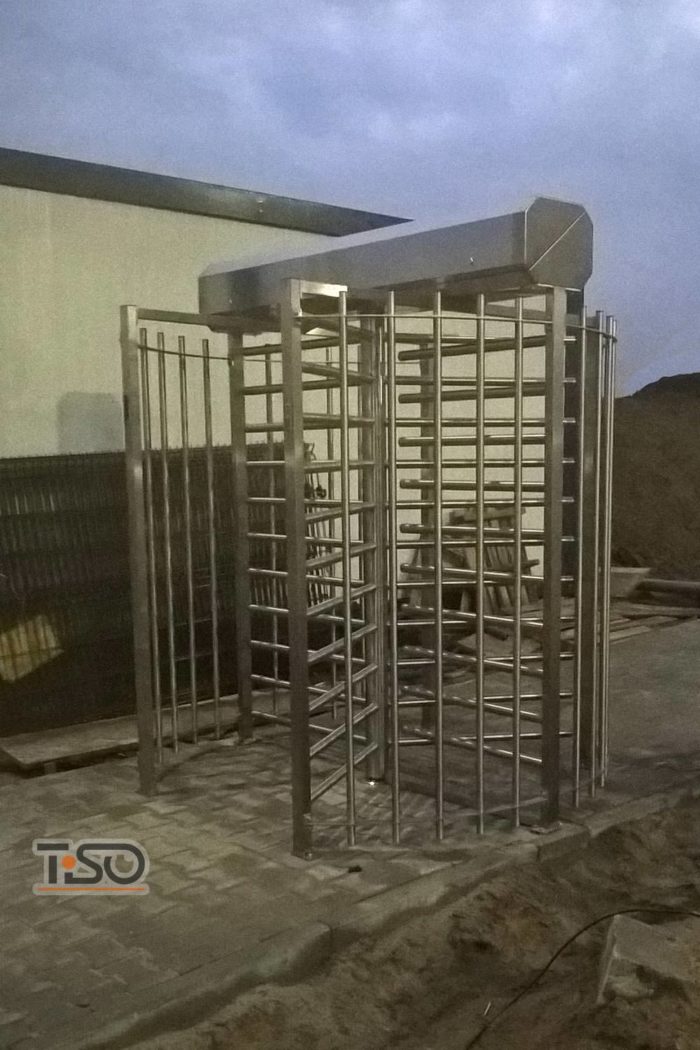

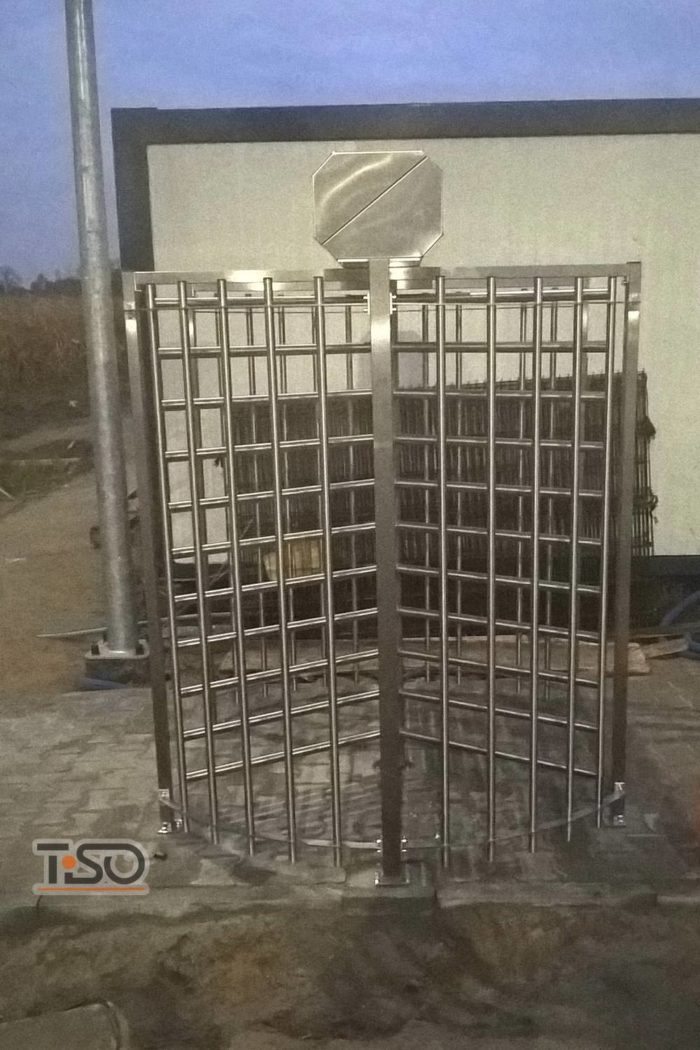

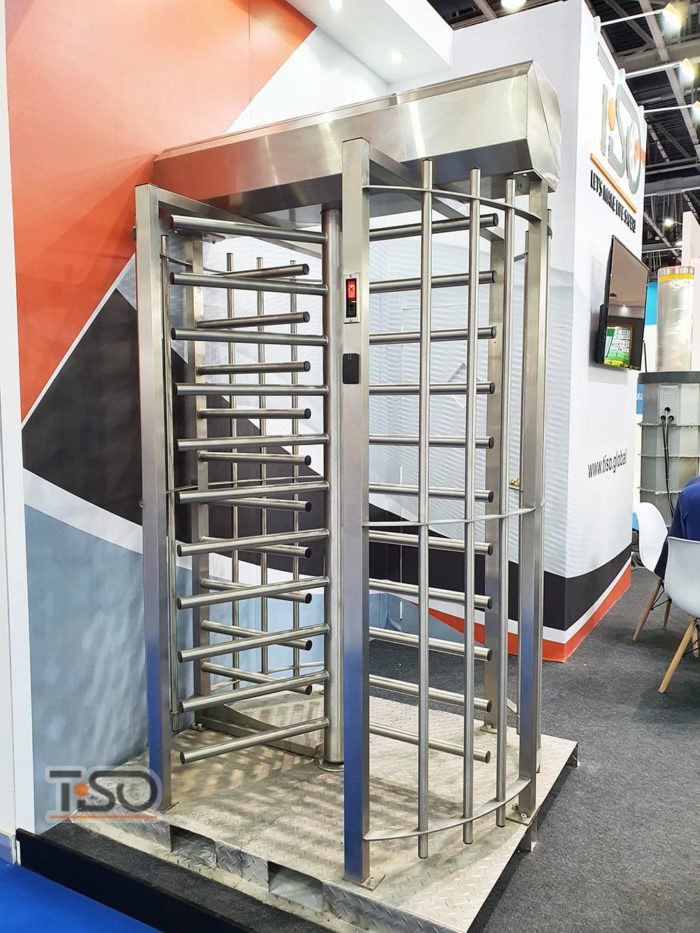

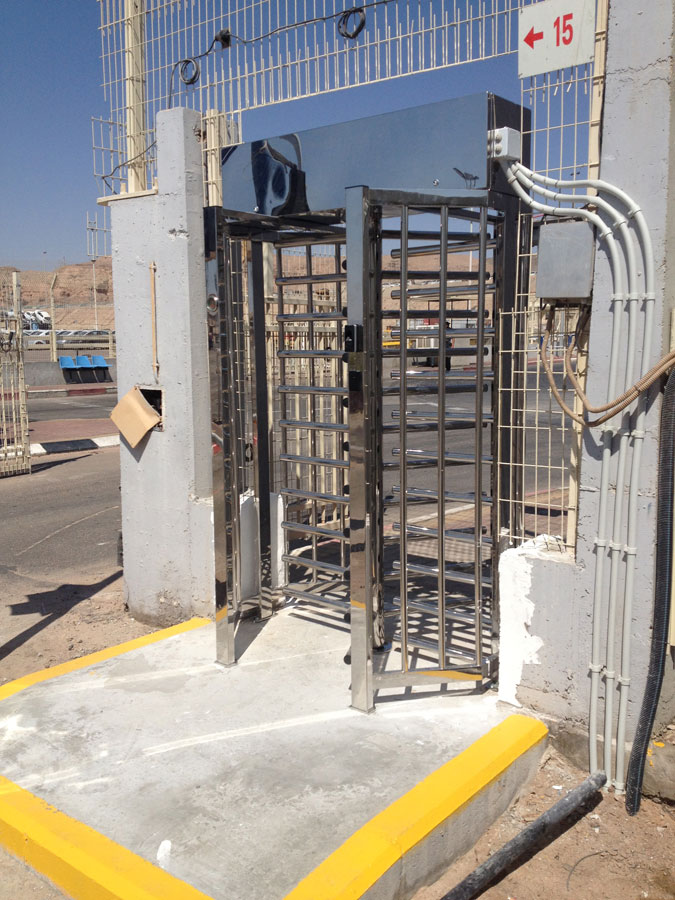

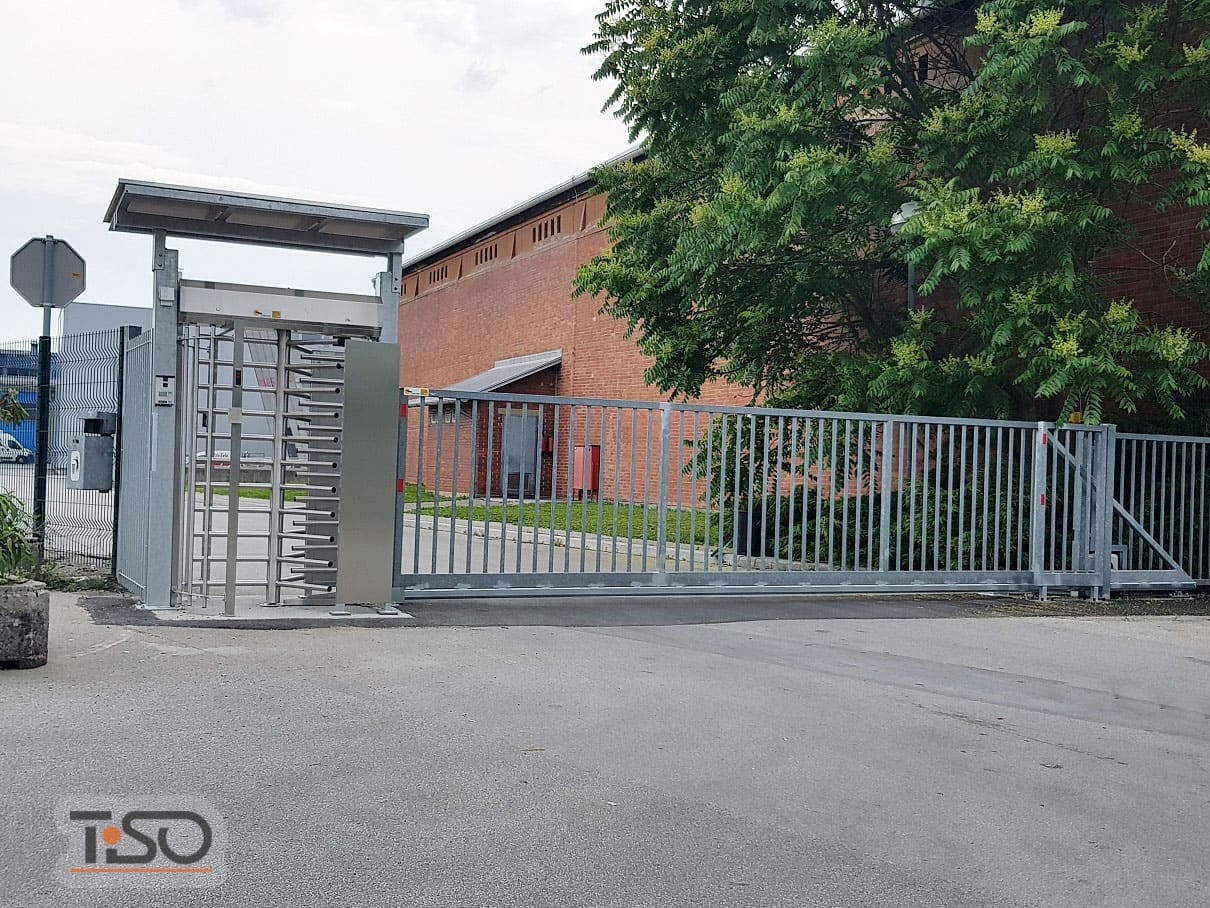

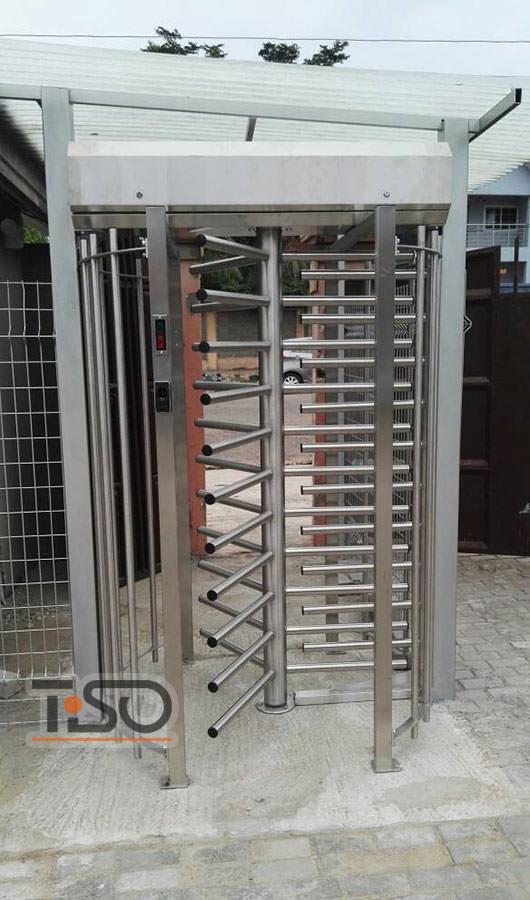

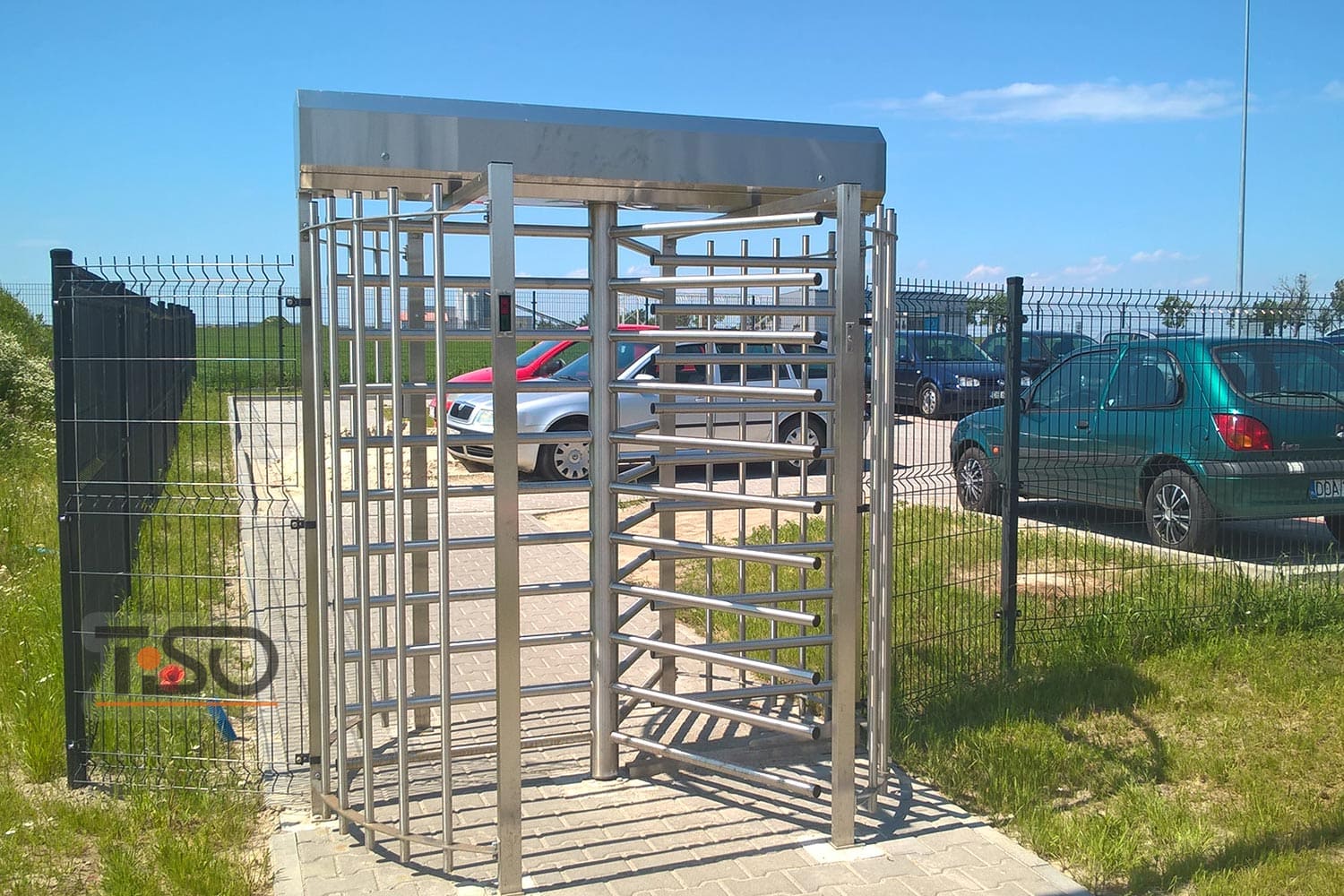

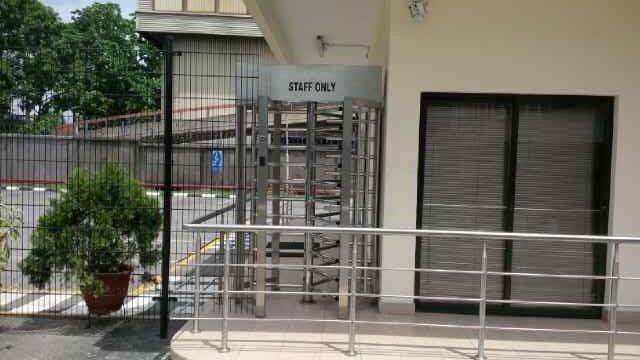

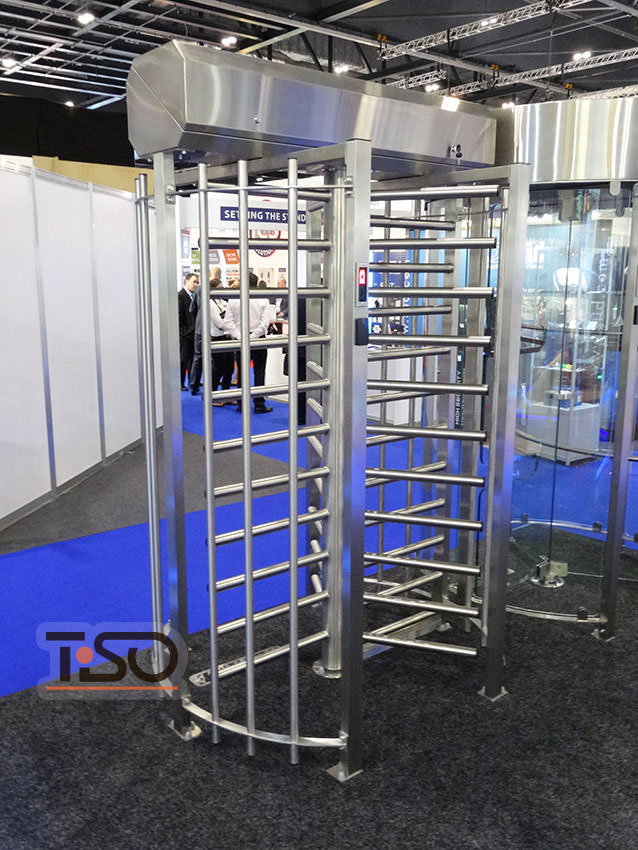

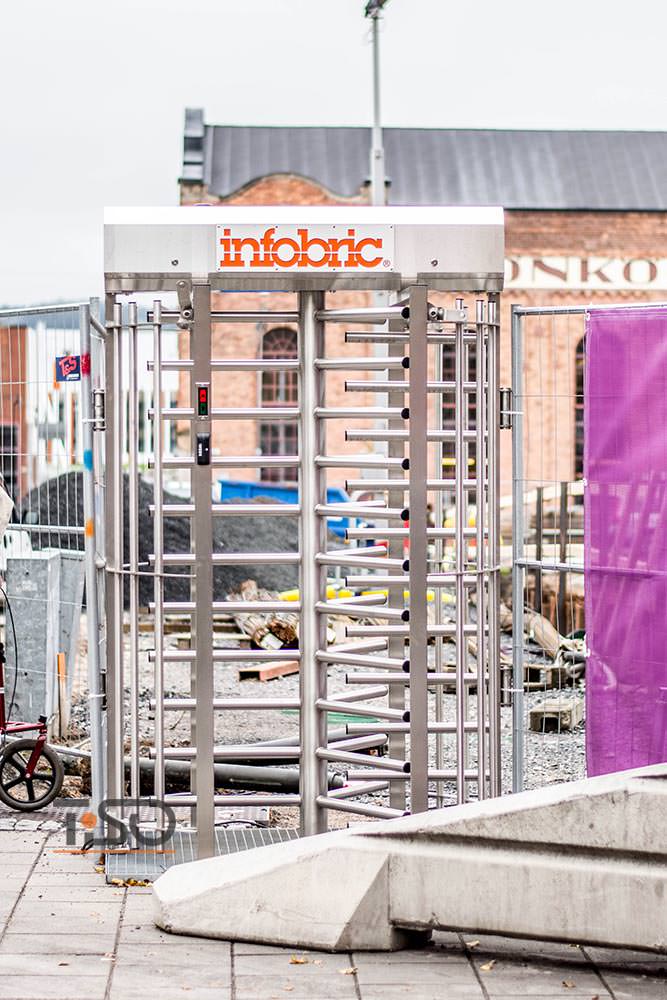

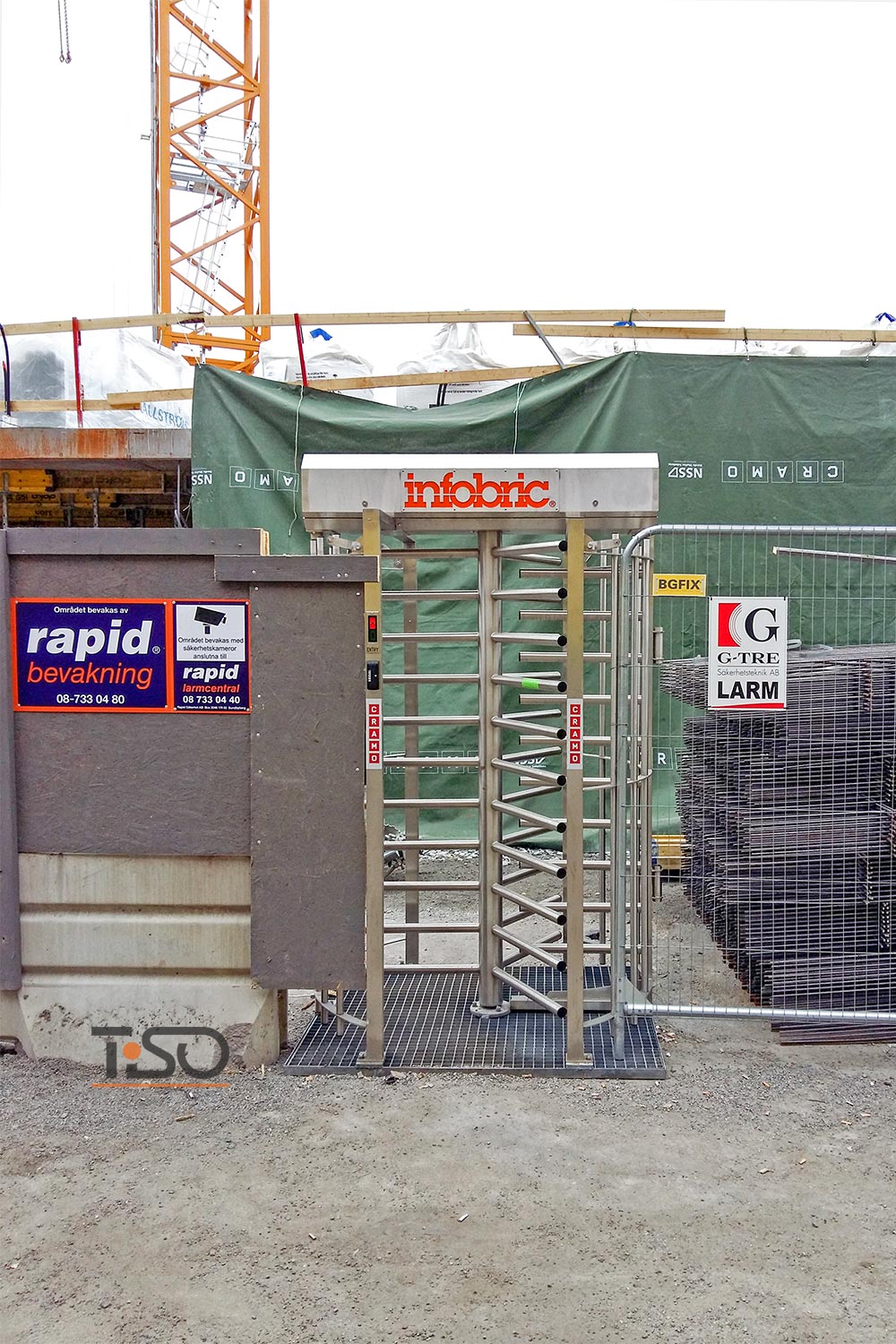

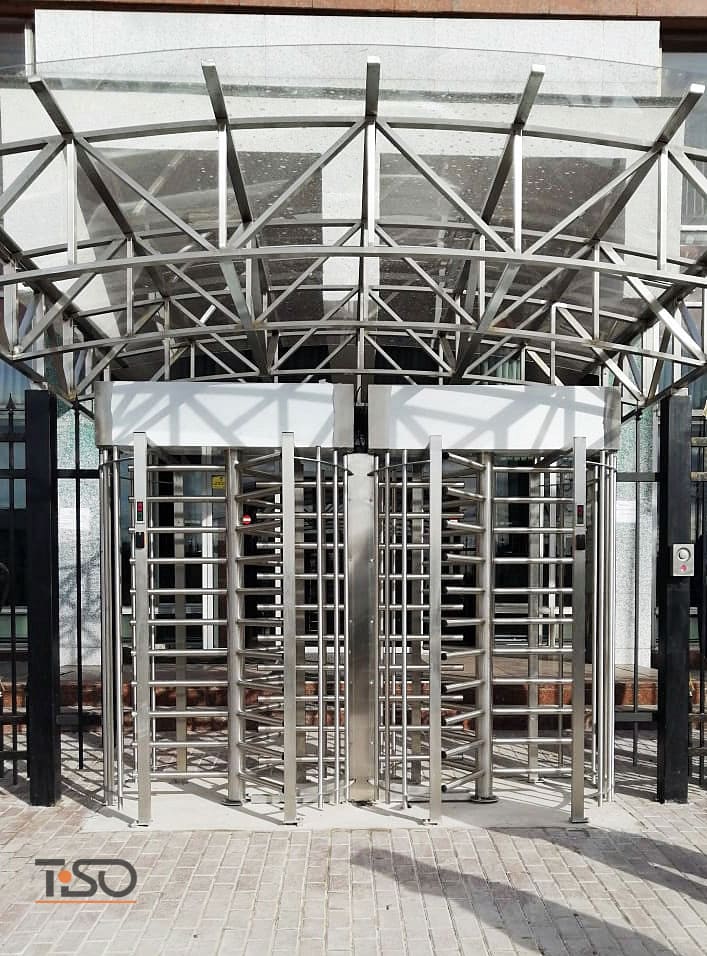

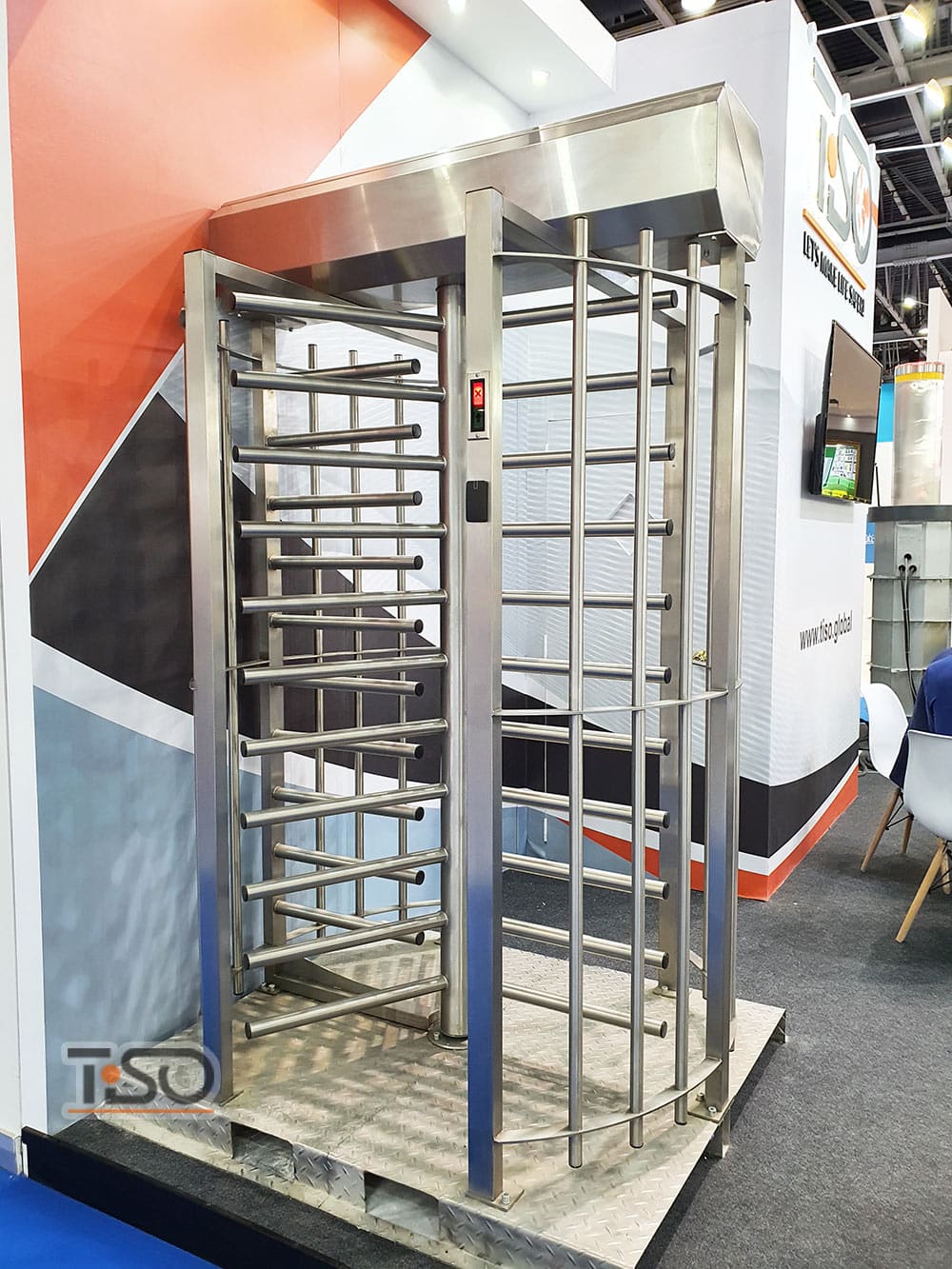

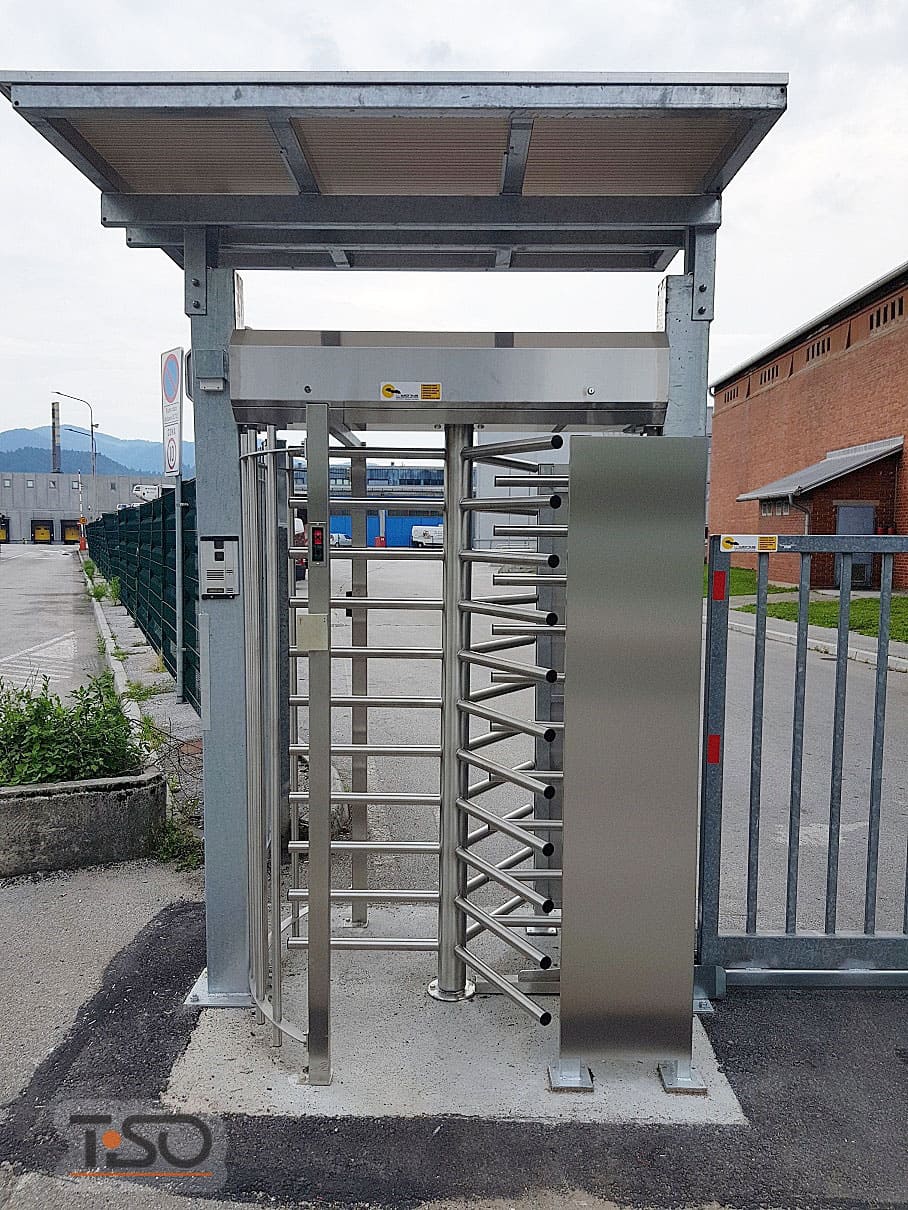

Turnstile Sesame provides complete coverage of the passage area. It can be supplied with a three-blade (120 degree angle between drivers, Y-type) or four-blade (90 degrees, X-type) rotor, with an electromechanical or servo drive mechanism. It is possible to implement the GATEWAY function for double identification of a person, which further increases the security level of the facility. The collapsible design simplifies the transportation of the turnstile to the place of installation. The version with one-piece welded side rails increases the resistance of the turnstile design to attempts of unauthorized entry into the protected area.

Peculiarities when the power supply is switched off, the electromechanical full-height turnstile switches to the locked state and can be unlocked with a special key. To ensure operability in case of interruptions in the electrical network, a rechargeable battery is connected, a place for which is provided inside the turnstile.

Specifications and equipment of the goods may differ from those shown in the photo.

Characteristics
Sesame Sesame - L
Габаритные размеры (ШхГхВ), мм X type - 1254x1300x2300 Y type - 1420x1158x2300 X type - 1254x1300x2300 Y type - 1420x1158x2300
Количество поводков (углов) X type - 4 (90°) Y type - 3 (120°)
Пропускная способность, чел/мин 20
Passage width, mm X type - 510 Y type - 650
Вес, кг (не более) X type - 375 Y type - 375
Механизмы Сервоприводной (Моторизированый) или Электромеханический Servo driven (motorized)
Standard version Brushed stainless steel AISI 304
Available options Brushed stainless steel AISI 316
Polished stainless steel AISI 304
Polished stainless steel AISI 316
Hot dip galvanizing
Painting in any RAL color
Supply voltage primary - (100-240) V, 50/60 Hz; secondary - 12 V.
Maximum power consumption, W 155 55
MCBF, cycles 10 000 000 1 500 000
Degree of protection according to GOST 14254-96 IP41-54 *
Temperature, °C -40 / +40
Fail safe Fail secure опционально стандартно стандартно ─
* первая цифра стандартная, все остальные доступны по запросу. По запросу уровень защиты может быть до IP65.
